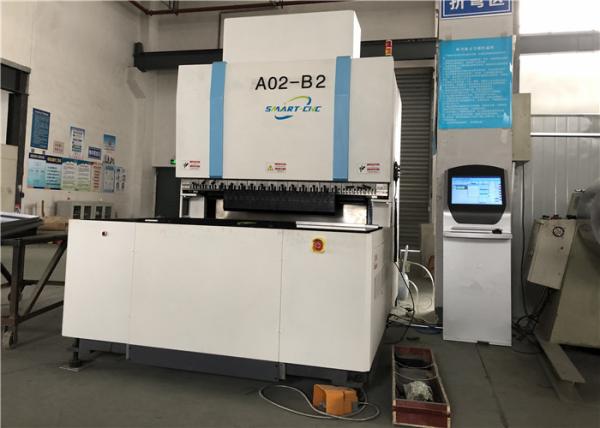

China Panel Bender Machine, Automatic Panel Bender Machine, Auto Folder Machine, Panel Bending Machine 2500

A bending method of a multi-axis drive bending machine includes the following steps:

1) First adjust the relative position of the upper and lower pressing knives; adjust the position of the upper and lower bending knives relative to the upper and lower knives; adjust the position of the loading and unloading driving device; adjust the height of the lifting platform and the position of the locking mechanism;

2) Place the sheet on the loading and unloading platform, first raise the positioning clip of the lifting rear positioning device, use the positioning clip to position the rear end of the sheet, and then adjust the positioning block on the rail-type side positioning device. Position, positioning the lateral position of the sheet through the positioning block;

3) The lifting platform is lifted to the position where the locking mechanism contacts the sheet by the lifting mechanism on the loading and unloading driving device, and the sheet is locked and fixed by using the locking mechanism; the locking mechanism can be set as a suction cup, and the negative pressure The principle causes the suction cup to generate negative pressure to hold the sheet; and the locking mechanism can also be set as an electromagnet, which fixes the sheet by the attraction of the electromagnet;

4) The sheet material fixed on the adsorption mechanism is transferred to the position between the upper and lower pressing knives through the upper and lower driving device, and one end of the sheet material extends between the upper and lower knives;

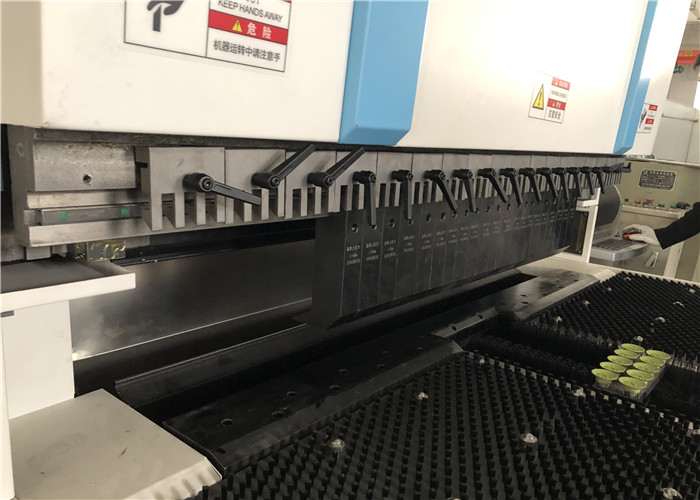

5) Adjust the position of the upper pressing knife through the pressing driving lifting device, so that the upper pressing knife is pressed on the sheet, and the sheet presses the lower pressing knife to fix the fed sheet between the upper and lower pressing knife;

6) After the end of the sheet is pressed by the upper and lower pressing knife, the adjustment and adjustment of the horizontal bending driving device and the upper and lower bending driving device, and the pressing and lowering driving control the pressing and fixing and releasing of the upper and lower blades, As well as the loading and feeding actions driven by the loading and unloading, complete the bending of any shape, any angle and flexible arc bending parts.

Technical data:

Configuration:

Youtube Video:

https://youtu.be/uppvfY7DtC8

https://youtu.be/wUtVbQg7IzI

https://youtu.be/02RN_LzwdrA

Wuxi Smart CNC Equipment Group CO.,LTD is a professional manufacturer and exporter in sheet metal machine tools,Wuxi Smart CNC Group their branch company including VISTMAC Machine Manufacturing Co.,Ltd . WUXI SMART CNC has 30 years history in sheet metal working machinery manufacture and export experience.
SMART CNC has always been manufacturing and distributing CNC Fiber Laser Cutting Machine, CNC press brake, hydraulic shear, plate rolling machine, Pipe Bending Machine as well as other sheet metal processing machine, including 5 major kinds, 20 series and more than 200 specifications. The products manufactured are widely employed in field of Machinery Manufacturing, Metallurgy, Petrifaction, Electrical Power, Wind Power Generation, Aerospace, National defense and military industry, Auto-industry, Railway, Shipbuilding, Natural gas and oil transportation. SMART CNC machines have been exported to more 50 countries and regions.
Capability of company: SMART CNC Group has over 250 employees with 310,000m2 floor space, 120,000 m2 construction spaces, among which 60,000 m2 manufacturing space, 300 sets of processing machines with more than 40 sets of heavy duty precise processing equipment.
Applied field: SMART CNC products are wide used in the field of Machineries, auto-making, vessel manufacturing, petrochemical industry, power supply, metallurgy, aerospace, military defense, railway vehicle, engineering machineries, metal forming machineries, wind power generation, natural gas and oil transportation pipe and construction pipe.
Research and develop capacity: 1 National R&D Center awarded by country, 1 Jiangsu Provincial Research Center for Metal forming engineering, 40 professional engineers, among them 10 senior professionals, 1 Outstanding Science expert of Jiangsu Province, 2 Pro. Senior Engineers, 4 engineering doctors from Xi’an Jiaotong University, 8 Engineering management masters, 20 Engineering masters, SMART CNC are honored as Chinese famous trade mark, National May Day Medal Winner, the one of top 10 self-innovation enterprises awarded by CMTBA, one of top 10 companies of nationwide metal processing innovation capacity, also awarded as most innovative company, advanced technological innovation company, The fourth batch of innovative pilot enterprise awarded by Ministry of Science and Technology.
ISO9001:2008 International quality management system certification, ISO14001:2004 environmental management system certification, OHSAS18001:1999 occupational health and safety management system certification.
CE and TUV
Quality undertaking: We are always devoting ourselves to “Quality First, Customer First” principles and keeping our promises for quality, striving for offering products with excellent quality, and we are very pleased to cooperate with friends from all over the world and always achieving co-development.
