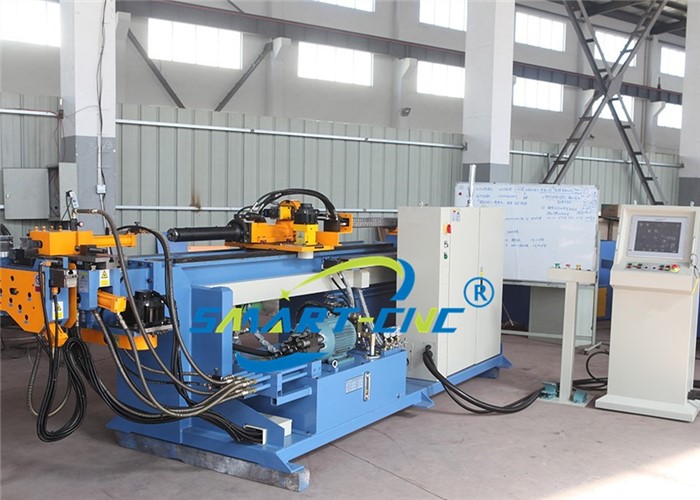

Hydraulic Servo Round steel Pipe Bending Machine

Main Features:

1. Adopted industries: aircraft, architecture, furniture, exhaust pipe, car frame, car seat, handle bar, exercies equipment;

2. Graphic guidance display, friendly use and easy operation;

3.Simulation of preset bending program allows you to see the graphs prior to procuntion;

4.Bending feasibility examining on paper through the work cycel to discover possible abnormal conditions or interference before actual production.

Operation Mode / Servo Control

1. ELECTRIC-SERVO CONTROL

· Electric-Servo motor drive of CNC tube bender combines with servo control.

· Feeding, rotation, bending, left/right shift, up/down shift, pressure die slidng…etc driven by electric-servo in CNC tube benders enables accuracy to reach in ±0.05mm/degree.

· Pressure-die and feeding boosters exhibit extra powerful bending capability.

· Manual servo control is available to set absolute and relative data to perform accuracy movement.

2. Y.B.C-AXIS CONTROLLED SIMULTANEOUSLY

· The simultaneous controllability for Y.B.C-axis of CNC tube benders significantly upgrades productivity.

· X.Y.Z-axis can be converted into Y.B.C-axis.

3.AUTOMATIC WORKPIECE LENGTH CALCULATION

·Once the dynamic process of Y.B.C-axis has been set, overall length of tube can be automatically calculated.

4.MULTIPLE OPERATION MODES

· It is available in CNC tube benders to select different operating modes such as single bending, manual, semi- auto and fully-auto.

· Workload counter function is equipped with total quantity, present quantity and count-down quantity.

5.BENDING CYCLE TIME DISPLAY

· In fully automatic operating mode, the bending cycle time for each tube and related tube data are displayed

Accurate And Flexible Bending Performance

1.OVALITY AND WALL THINNING RATIO

· Requested tube ovality and wall thinning ratio can be achieved through well adjustment on pressure die segmented sliding, feeding torque and bending speed functions in CNC tube benders.

· CNC tube benders’ clamp retraction time after bending could be scheduled to stabilize the spring-back affection.

2.FLEXIBLE BENDING SETTING

· CNC tube benders allow users to re-organize the bending sequence to effectively avoid interference.

· Cycle time saving functions(such like, motion in advance, retraction setting,..etc) are available in CNC tube benders.

3.90-STEP SPEEDS ADJUSTMENT

· Each axis driven by electric-servo in CNC tube benders is able to set 1.0~9.9 (90 different steps) in speed according to users’demand.

· 6 bending processes could be selected to save cycle time and avoid interferences which could fail the work to proceed.

Comprehensive Safety Protection

· CNC tube benders have front and rear limit switches to prohibit feeding/carriage to move abnormally caused by artificial errors or machine malfunctions.

· Automatic mandrel lubrication system: Air blast and lubrication time can be set as desired.

· The data and programs can be retained for 3 years in case of power failure.

· Screen protection and password protection functions on CNC tube bender prevent the computer malfunction due to unauthorized modification of files.

· The electrical cabinet of CNC tube bender is equipped with an air conditioner to keep at a constant temperature. In may prevent electronic parts from damage caused by high temperature.

· CNC tube benders equip with emergency stop switch.

· If no mandrel is fitted on CNC tube bender, work piece length is not restricted (Cycling feeding function)

Specification

Remarks:
1.Due to the continuous improvement on design, the specifications above are subject to change without notice.
2.Plz contact sales to recommend you the suitable model with the latest specification details.
