    Aluminum Composite Panel Profile Press Brake Machine Wrought Iron Bending Machine

    Ask Lasest Price
    Brand Name : SMART CNC
    Model Number : WE67K-80/3200
    Certification : CE ISO TUV
    Price : Negotiable
    Supply Ability : 50 SET/Month
    Delivery Time : 35 days
    • Product Details
    • Company Profile

    Aluminum Composite Panel Profile Press Brake Machine Wrought Iron Bending Machine


    Aluminum Composite Panel Profile Wrought Iron Stainless Steel Sheet Metal Plate Press Brake Bending Machine For Construction


    Main features:

    All steel welded structure, vibrating treatment of ageing for removal of internal stress, with good rigidity and stability.

    Torsion shaft forced synchronization of mechnaical limit stopper balance, with high precision.

    Integrated hydraulic transmission system, large range of speed regulation thanks to transmission of thesliding block, stable and reliable performance.

    Rear stopper and the sliding block have electrical adjustment for their stroke, with manual fine tuning, and

    digital indication.

    Adjustment mechanism of sliding block independent from oil cylinder assembly to enhance sealing effect upper mold is fitted with tilting warp offset mechanism.

    For bending machine from 250 t up synchronization mechanism of mechanical or electrical hydraulic transmission is fitted, lower working table is fitted with warp offset mechnaism.

    DA52S Control system
    -Quick,one page programming

    -Hotkey navigation

    -7" widescreen colour TFT

    -Upto 4 axes (Y1,Y2 and 2 auxiliary axes)

    -Crowning control

    -Tool/meterial/pruduct library

    -USB,peripheral interfacing

    -Advanced Y-axis control algorithms for closed loop as well as open loop valves

    -Panel based controller with optional housing

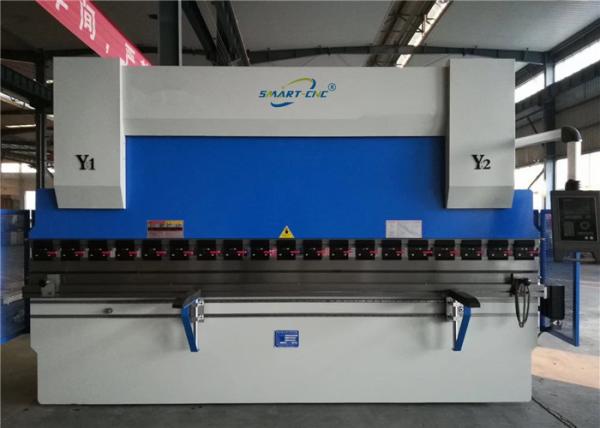

    DA52S 100T/2500 Press Brake Machine
    machine model
    DA52S 100T/2500
    Distance between holes
    2000mm
    Max opening height
    400mm
    Depth of throat
    350mm
    Ram travel
    150mm
    Overrall dimension
    2980X1650X2330(Lxwxh)mm
    Main power
    7.5kw
    Weight
    6800kgs

    Standard Equipment:

    -DA52S control system

    -Powered Depth Y-axis&Back gauge X-axis

    -Servo control X,Yaxis

    -HIWIN Ball screws &Polished rod with 0.05mm accuracy

    -Plate Support Arms

    -Telemecanique/Schneider E lectrics

    -Germany Bosch-Rexroth Hydraulic

    -Germany Siemens Main Motor

    -Hydraulic &Electrical overload protection

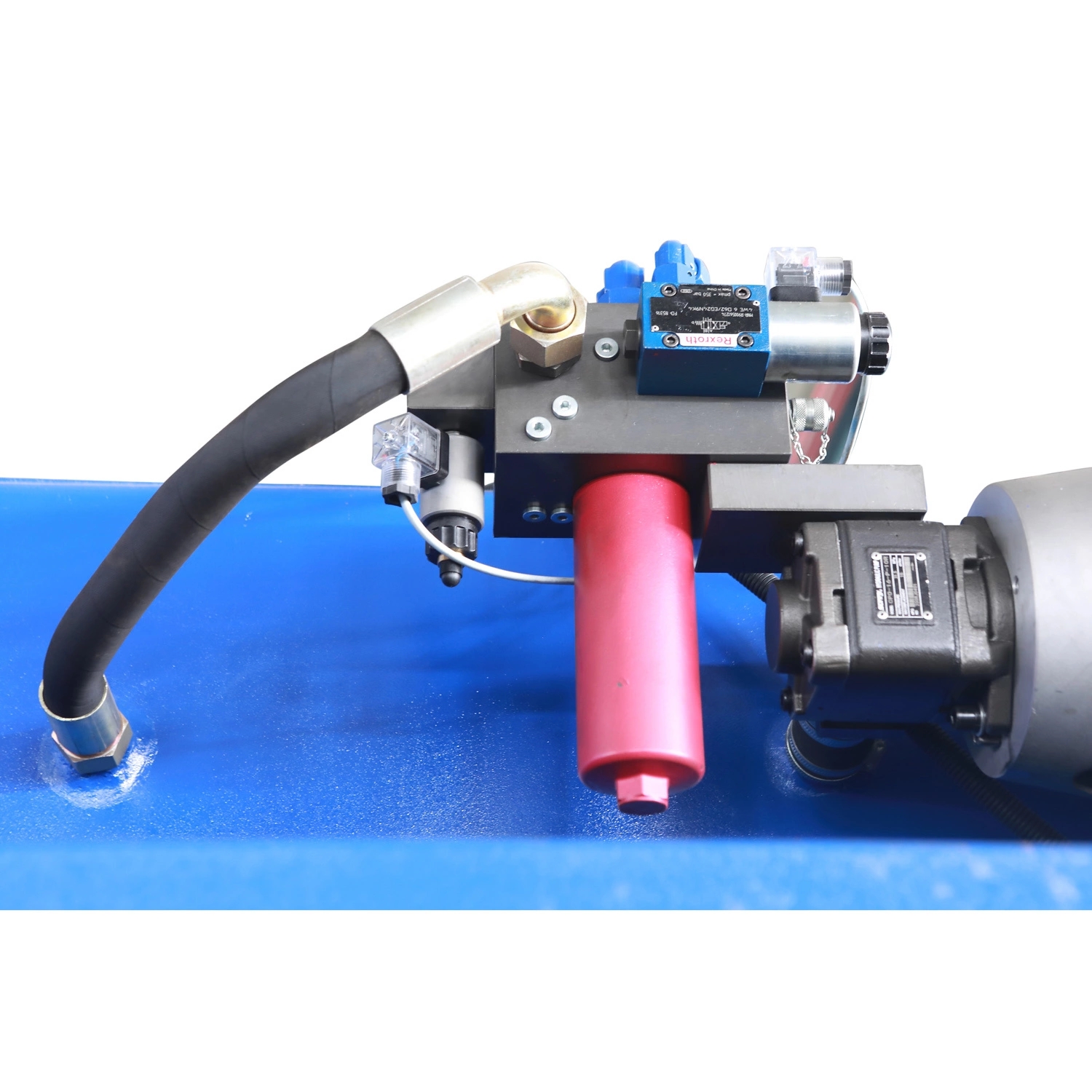

    Germany valve oil pump
    using Germany oil pump guarantee the oil service life and reduce noise during working

    France schneider electrics
    stable France schneider electrics,Estun servo drive to improve the positioning accuracy of X,Y Axis

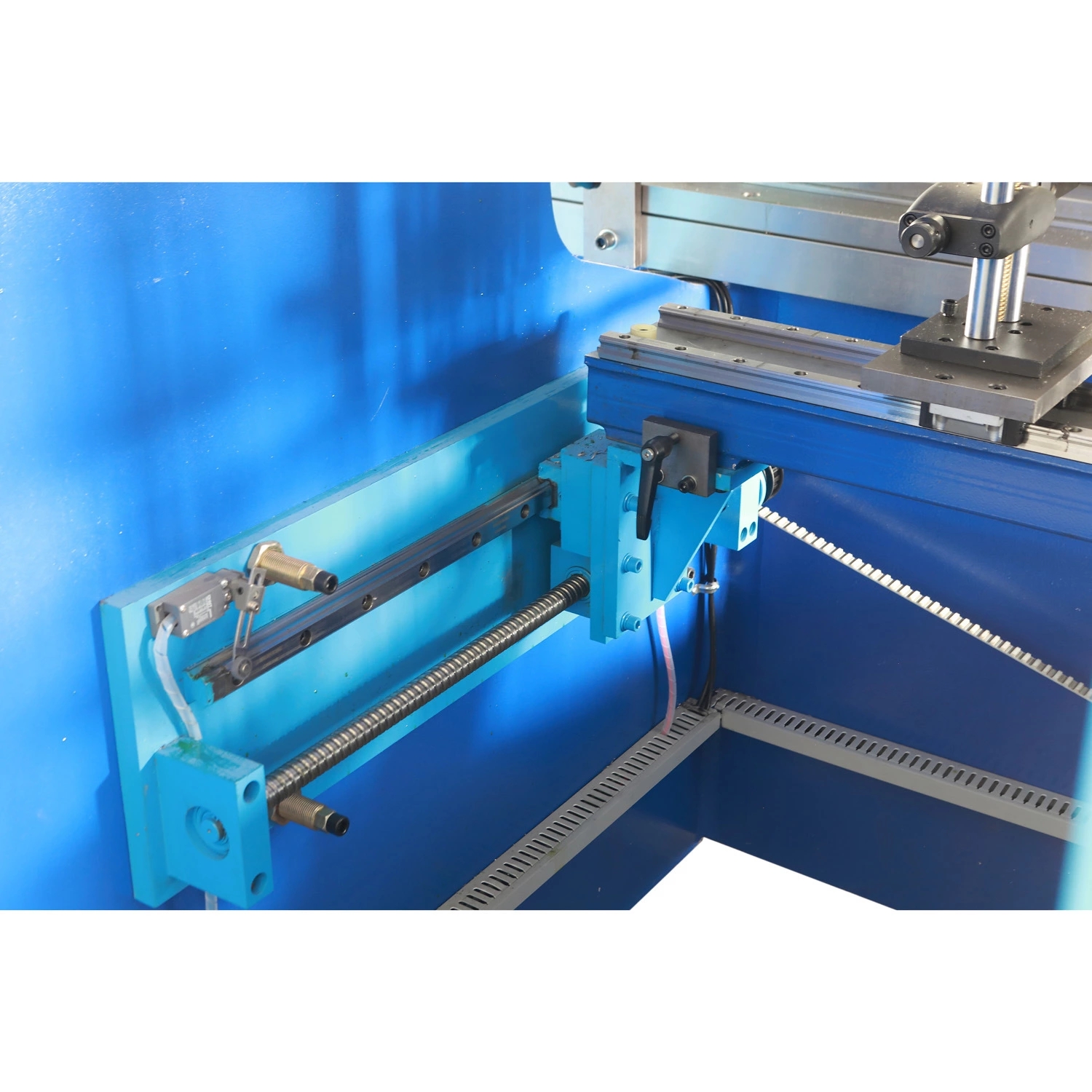

    Hiwin ball screw and linear guide rally
    using Taiwan hiwin ball screw and linear guider to improve the machine backguage accuracy

    Mechanical fast clamps
    using mechanical fast clamp for upper dies,changing dies more convenient and safe

    Front plate support
    movable front material support on Hiwin linear guider,can move left and right by hand very easy

    Main Specification

    Type


    Name

    WE67K-63/2500

    WE67K-80/2500

    WE67K-

    100/3200

    100/4000

    WE67K-

    160/3200

    160/4000

    WE67K-

    200/3200

    200/4000

    WE67K-

    250/3200

    250/4000

    250/5000

    250/6000

    WE67K-

    300/3200

    300/4000

    300/5000

    300/6000

    WE67K-

    400/4000

    400/5000

    400/6000

    400/7000

    Nominal pressure(KN)

    630

    800

    100016002000250030004000
    Length of table(mm)2500

    3200

    4000

    3200

    4000

    3200

    4000

    3200

    4000

    5000

    6000

    3200

    4000

    5000

    6000

    4000

    5000

    6000

    7000

    Width of table (mm)150160250250250250250

    Distance between uprights (mm)


    2100

    2600

    3200

    2600

    3100

    2600

    3100

    2600

    3200

    4000

    4800

    2600

    3200

    4000

    4800

    3200

    4000

    4800

    5100

    Throat depth (mm)250320320320320350400
    Ram stroke (mm)100100200200250250320
    Max. open height(mm)320320425450500520630

    Ram speed

    Approaching (mm/s)20018016015012010090

    Working (mm/s)


    8-108-108-108-108-108-107-10

    Returning (mm/s)


    150140120100908060
    Main motor power (KW)

    5.5

    7.5

    7.5151518.52230

    Overall

    dimensions

    Length(mm)


    2500

    2584

    3340

    4084

    3300

    4100

    3310

    4100

    3350

    4150

    5150

    6150

    3400

    4200

    5200

    6200

    4400

    5400

    6400

    7400

    Width(mm)

    1720

    1850

    188519501950214521502450
    Height(mm)

    2160

    2210

    251027502750312035003655

    Weight(kg)


    5000

    5600

    8500

    9500

    11000

    13000

    11500

    13500

    18000

    20500

    24000

    27000

    23000

    24000

    26000

    30000

    30000

    35000

    40000

    45000
