NC CNC Hydraulic Shearing Machine Thin Thick Metal Plate Bar Guillotine Cutting

Ask Lasest Price
Brand Name :	SMART CNC
Model Number :	QC11K-16×2500
Certification :	CE ISO TUV
Price :	Negotiable
Supply Ability :	50 SETS/MONTHS
Delivery Time :	30

Add to Cart

Product Details
Company Profile

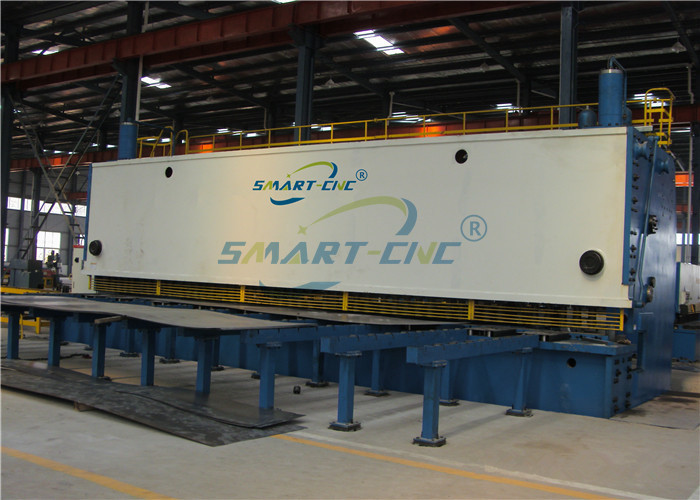

NC CNC Hydraulic Shearing Machine Thin Thick Metal Plate Bar Guillotine Cutting

NC CNC Thin Thick Hard Iron Ms Ss Aluminum Stainless Steel Metal Plate Bar Guillotine Cutting Plates Shears Shearing Machine For Sale

QC11Y ,QC11K Series Hydraulic Guillotine Shear

1. Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.

2. Adopt integrated hydraulic system, more reliable and easy for maintenance.and the hydraulic system from Bosch-Rexroth,Germany,

3. Entire welded fram,press with tempering.Hydraulic drive,reservoir teturn stroke.

4. Three point supporting rolling guide to insure quality.Square blade with long life.

5. Blade clearance adjusting indicated,easy for adjusting,Light alignment device.Stepless adjusting up blade stroke.

6. Railing guards,Digital display:back gauge size&shear times.Adjustable shear angle.

7. Safe fence and the electric inter locker have been designed for the machine to ensure the operation safety to CE regulation.

Product Name	New CNC automatic manual electric hydraulic mechanical guillotine steel plate sheet metal cutting shearing machine price
Material	carbon steel,stainless steel,aiuminum steel
Color	optional
Standard	CE ISO
Model	16*2500
Brade	USUN
Shearing thickness	16mm
Backgauge Range	20-800mm
Strokes	12-20
Main Motor	22kw
Weight	10200kg
Overall Dimensions	328018302520mm

MAIN SPECIFICATIONS

Type Name	Shear angle(°)	Stroke (n/min)	Throat depth(mm)	Table height(mm)	Back gauge range(mm)	Motor (KW)	Overall dim (L×W×H) (mm)	Weight (kg)
QC11Y-6×2500	0.5°-2°	15-30	100	810	10～800	11	3310×2360×2100	6600
QC11Y-6×3200	0.5°-2°	15-30	100	810	10～800	11	4010×2329×2100	7800
QC11Y-6×4000	0.5°-2°	8-15	100	900	10～800	11	4815×2345×2490	10600
QC11Y-6×6000	0.5°-2°	8-15	100	900	10～800	15	6500×2200×2260	23000
QC11Y-8×2500	0.5°-2°	12-24	100	810	10～800	15	3032×2387×2380	7700
QC11Y-8×3200	0.5°-2°	12-24	100	810	10～800	15	4040×2342×2380	9000
QC11Y-8×4000	0.5°-2°	12-24	100	810	10～800	15	4868×2387×2380	9800
QC11Y-8×5000	0.5°-2°	5-10	300	810	10～800	22	5800×2500×2300	17500
QC11Y-8×6000	0.5°-2°	5-10	300	810	10～800	22	6700×2560×2300	28000
QC11Y-8×8000	0.5°-2°	4-10	300	850	10～1000	30	9140×3500×3502	54875
QC11Y-8×10000	0.5°-2°	4-10	300	850	10～1000	30	11035×3885×4720	71120
QC11Y-10×6000	0.5°-2.5°	5-12	300	800	10～1000	37	7342×3625×3797	37000
QC11Y-10×8000	0.5°-2°	5-8	300	880	20～1000	37	8935×2710×3670	55000
QC11Y-10×10000	0.5°-2°	4-10	300	960	20～1000	45	11115×3400×5740	98550
QC11Y-10×12000	0.5°-2°	4-10	300	960	20～1000	45	13115×6740×5580	122800
QC11Y-12×2500	0.5°-2.5°	6-15	100	900	10～800	18.5	3430×2460×2576	9358
QC11Y-12×3200	0.5°-2.5°	6-15	100	900	10～1000	18.5	3950×2300×2550	11500
QC11Y-12×4000	0.5°-2.5°	7-14	100	810	10～1000	22	4610×2867×2641	14000
QC11Y-12×5000	0.5°-2.5°	7-14	100	890	10～1000	22	5655×3570×2841	20150
QC11Y-12×6000	0.5°-3°	7-14	100	890	10～1000	37	7230×2740×3840	39000
QC11Y-12×7200	0.5°-2.5°	10-20	100	900	10～1000	45	8000×3910×3750	55150
QC11Y-12×8000	0.5°-2.5°	10-20	100	900	10～1000	45	8950×3910×3760	60100
QC11Y-13×2500	0.5°-2.5°	6-15	100	900	10～1000	18.5	3430X2725X2575	9800
QC11Y-13×3200	0.5°-2.5°	6-15	100	900	10-1000	18.5	3810X3060X2546	11500
QC11Y-13×6000	0.5°-3°	7-14	300	800	10-1000	37	7035×2740×3825	39300
QC11Y-13×7000	0.5°-3°	7-14	300	1000	10-1000	37	8370×3900×3825	45000
QC11Y-13×8000	0.5°-2.5°	5-10	300	850	10-1000	55	8950×2710×3060	6400
QC11Y-13×9000	0.5°-2.5°	5-10	300	850	10-1000	55	11450×7310×3760	76500
QC11Y-13×12000	0.5°-2°	4-10	100	960	10-800	2×45	13275×5470×6610	16600
QC11Y-14×12000	0.5°-2°	4-10	100	960	10-800	2×45	13275×5470×6610	16600
QC11Y-16×2500	0.5°-2.5°	7-10	100	810	10-1000	22	3220×2753×2675	13400
QC11Y-16×3200	0.5°-2.5°	7-15	100	810	10-1000	30	3930×2985×2810	15300
QC11Y-16×4000	0.5°-2.5°	7-15	100	950	10-1000	30	4905×3142×2580	20630
QC11Y-16×5000	0.5°-2.5°	7-15	100	970	10-1000	45	5928×3845×2848	30800
QC11Y-16×6000	0.5°-2.5°	6-15	100	1000	10-1000	45	6952×2540×2820	42050
QC11Y-16×7000	0.5°-2.5°	8～16	100	1000	10～1000	45	8050×2580×3535	52750
QC11Y-16×8000	0.5°-2.5°	4～10	100	890	10～1000	45	9378×3545×4882	98860
QC11Y-16×9000	0.5°-2.5°	4～8	100	890	10～1000	55	11110×7860×4982	106600
QC11Y-16×10000	0.5°-2.5°	4～8	300	900	20～1000	55	11870×7728×5322	119288
QC11Y-16×12000	0.5°-2.5°	4～8	100	900	20～1000	2×45	13873×6255×6800	187000
QC11Y-20×2500	0.5°-3°	9-18	100	1000	20～1000	37	3640×3915×3240	22500
QC11Y-20×3200	0.5°-3°	7-14	100	1000	20～1000	37	4340×3915×3040	24000
QC11Y-20×4000	0.5°-3°	5-10	100	1000	20～1000	37	5070×3320×3150	27382
QC11Y-20×6200	0.5°-3°	4-8	100	1000	20～1000	55	7438×2673×3875	58000
QC11Y-20×8200	0.5°-3°	4-8	100	1000	20～1000	55	9976×7680×4631	100000
QC11Y-25×2500	0.5°-3 °	7～15	100	1000	20～1000	45	4690×3458×3235	22600
QC11Y-25×3200	0.5°-3 °	6～12	100	1000	20～1000	45	5390×3458×3235	26500
QC11Y-25×4000	0.5°-3 °	5～10	100	1000	20～1000	45	6190×3458×3235	29500
QC11Y-25×6200	0.5°-3°	3-6	100	1000	20～1000	55	9335×5750×3930	61000
QC11Y-32×3200	0.5°-3.5 °	6-14	100	1000	20～1000	2×45	4310×2516×3583	37500
QC11Y-35×3000	0.5°-3.5 °	5-10	100	1000	20～1000	2×55	8311×3010×4092	51380
QC11Y-35×3500	0.5°-3.5 °	5-10	100	1000	20～1000	2×55	9019×3900×4062	57127
QC11Y-35×4000	0.5°-3.5 °	5-10	100	1000	20～1000	2×55	10336×3900×4092	61500

NC CNC Hydraulic Shearing Machine Thin Thick Metal Plate Bar Guillotine Cutting
