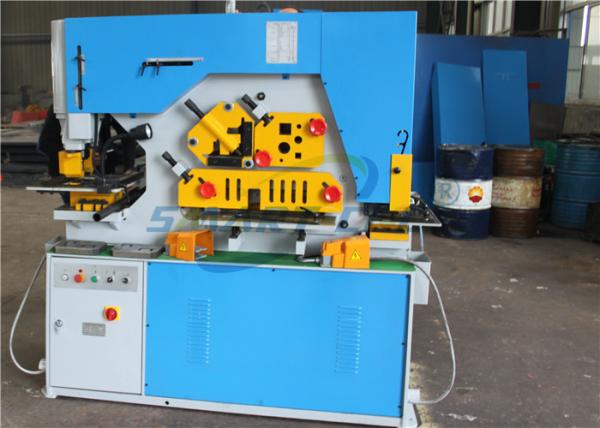

45ton Iron Worker, Hydraulic Iron Worker Machine, Sheet Metal Iron Worker Q35Y-12

Q35Y series industrial-grade hydraulic ironworker featuring multiple functions, including: round hole, square hole, oblong hole punching; steel plate, flat bar, angle steel, C-channel, H-beam punching; steel plate bending; angle steel shearing, notching and bending; flat, round, square bar, C-channel, I-beam, T-bar shearing/cutting; angle bending and pipe notching.

The machine comes standard with: quick-change coupling nut & sleeve, squaring arm with scale, electronic back gauge, gauging table with stops, punching base table, safety guards and more. With its multifunction, Q35Y series hydraulic ironworker is your first choice among the counterpart machine. Besides, all the components are of the highest quality in the matter of safety, function, capability and maintenance.

Our machine is designed via the most advanced technology and has the virtues of easy operation, low consumption and low maintenance cost. We also can provide customized solutions to better cater for customers’ needs.

Optional tooling:

Automatic Holding System: The automatic holding system can be chosen to set up in angle steel shearing and plate shearing work position. Additionally, the holders will fix the position of work piece in order to save time and improve working efficiency.

Temperature cooling system: When the machine is working, you can read the temperature of oil through the monitoring screen. If the oil temperature goes higher than 55 degree which is the default configuration, the inside cooling system will run automatically to decrease oil temperature in order to protect hydraulic system.

Specification

Model	Q35Y-20	Q35Y-25	Q35Y-30	Q35Y-40
Pressure(Ton)	90	110	140	200
Max.cutting thickness(mm)	20	25	30	40
Plate strength(N/mm2)	≤450	≤450	≤450	≤450
Cutting angle(degree)	8°	8°	8°	8°
Shearing size of one stroke(mm)	20x330 10×480	25x330 16×600	30x355 20×600	35x400 25×700
Ram stroke(mm)	80	80	80	100
Cycles/min(20mm stroke)(mm)	8	6	6	8-25
Throat depth(mm)	355	400	600	600
Punching thickness(mm)	20	25	26	35
Max.Punching diameter(mm)	30	35	38	41
Power of main motor(kw)	5.5	7.5	11	15
Overall dimensions(L*W*H)mm	1860x800x1900mm	2355x960x2090mm	2680x1040x2300mm	2850x1300x2400mm
Weight of machine(kg)	2500	4500	6800	9500
