    60 Ton Hydraulic Ironworker Machine , Industrial Ironworker For Sheet Metal

    Ask Lasest Price
    Brand Name : SMART CNC
    Model Number : Q35-16
    Certification : CE ISO TUV
    Price : Negotiable
    Supply Ability : 60set/ month
    Delivery Time : 20 DAYS
    • Product Details
    • Company Profile

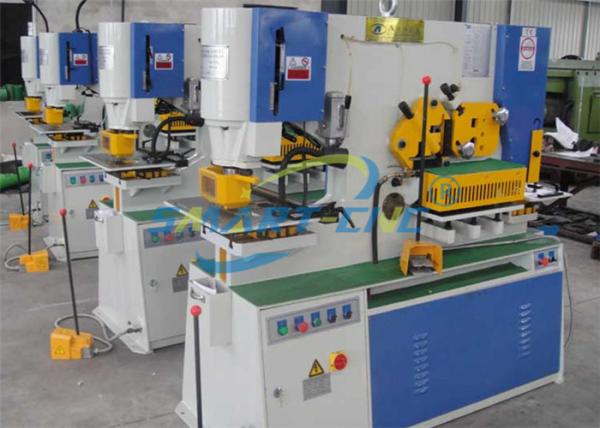

    60 Ton Hydraulic Ironworker Machine , Industrial Ironworker For Sheet Metal

    60ton Iron Worker, Hydraulic Iron Worker Machine, Sheet Metal Iron Worker


    Properties and Characteristics:

    1. Overall structure:

    This machine adopts hydraulic driving system and they are the latest iron workers in China. Various metal plate, square bar, round bar, angle, channel and joist can be cut, punched and notched on the machine. It is also equipped with a stop device for cutting.


    2. Advantage:

    ● This combined punching and shearing machine has punching & shearing angle & section function etc.

    ● This machine has light weight , small volume, low noise and high efficiency advantages etc, it is the best equipment of modern machinery manufacturing industry, bridge, electric power, communication etc;

    ● The best advantage for this machine: simple operation, flexible movement, high cutting efficiency, smooth section without a trace, low failure rate, long service life;


    3. Machine introduction:

    ● Lathe bed:

    The machine is composed of a body, a frame, steel frame, steel frame, shear work platform. The fuselage, frame is welded by steel plate, and others are connected by bolts, it can ensure the work intensity and rigidity, and same time make sure the convenience of assembling and disassembling repair.


    The right panel has adjustable cushion block, it can control the knife plate moving.


    The angle bracket has a pressing device which can be adjusted, pressing angle and cutting.

    The steel bracket has different size of square holes and round holes, to ensure these holes round to pass and cut.


    The shearing work table has a pressure plate which can be adjusted according to work piece’s thickness. The work bench has adjustment block; it can be used as a positioning shearing. The block can be adjusted at any angle; shear flat or angle can be arbitrarily cut at the side edge positioning.


    ● Shearing:

    The blade is integral and has four stations can be angle shear, including round steel, square steel, flat steel and plate steel shearing. If you replace the other dies in the square steel and round steel, this machine can shear channel steel and I-beam.


    Frame and cylinder are connected by a hinge, the upper end of cylinder and lathe bed are connected by hinge, the tool carrier makes the arc swing and cutting while under the action of the oil cylinder.


    Die cutting stations blade is fixed on the tool carrier, the lower blade is composed of three blocks of blade, they are fixed by bolts in the lower die seat. The blade on both sides can be adjusted, to ensure correct shear gap.

    In order to make the plate material can be die cut in the correct position in the shear modulus; the working table has a lateral stop block and the back block.

    ● Punching:

    The punch pin is fixed on the cylinder piston rod by locking nut, and the low die support is fixed on the bed die seat by bolts. While the punch pin and lower die alignment, you can tighten the bolts. In order to punch square hole and round hole, except piston rod has lateral plane outer guide, the punch top need have external thread block and needs milling oblong positioning slot, make sure to prevent the punch rotation. If the station is installed on the other dies, you can process bending, shearing modulus, shutter punching, big hole punching, channel steel, I-beam and plate punching etc.

    4. Electrical system:

    ● Electrical components using Schneider products, safety , reliability and long using life;

    ● Using three-phase AC power supply (380V, 50Hz), the voltage control circuit (24V) provided by the electric control transformer, the executive circuit of electromagnetic valve required DC power (+24V) supplied by the transformer and rectifier;

    ● The electrical components are safety and reliability, easy to get parts and convenient replacement ;

    Main Configuration:

    The main electrical system: SCHNEIDER

    Hydraulic components: TAIWAN

    Seal: JAPAN

    Motor: SHANGHAI

    Pump: TAIWAN


    Technical Features:

    1TypeQY35-20
    2Punch pressure750 KN
    3Max. shear plate thickness20 mm
    4Max. shear plate width480 mm
    5Strength of materials≤450 N/mm2
    6Shear angle8 °
    7Slider stroke80 mm
    8Stroke number8 /min
    9Throat depth355 mm
    10Max. punching capacityφ30×20
    11Motor power5.5 Kw
    12G.W.2200 KG
    13Before packing size (L*W*H)1860 *790 *1900 mm
    14Delivery time30 days after received deposit
    15Payment30% deposit, 70% balance before shipment
    16Price (FOB SHANGHAI)USD 9000

    Maximum Shearing Parameters:

    1TypeQY35-20
    2Round steel diameter50 mm
    3Square side length50 mm
    4Equilateral angle 90 °140 *140 *12 mm
    5Equilateral angle 45 °50 *50 *5 mm
    6T type steel140 *140 *12 mm
    7I-beam steel160 *86 *6 mm
    8Channel steel160 *60 *5 mm

    (Note: I-beam steel, channel steel, T steel dies need release special order)
