MAIN FEATURES:
• Excellent cutting quality for fine thickness and medium thickness
sheet metals.
• Maximum simultaneous positioning speed: 160m/min.
• Acceleration speed: 14 m/ s2 (1.5G).
• Precision: + - 0.05 mm.
• Energy efficiency: greatly reduced power consumption.
• IPG Resonator. Power output from 500W to 1500w .
• RayTools cutter cutting head with power output up to 2kw.
• Precitec HP cutting head for po wer output of more than 2kw.
• Fully enclosed and cabinned to ensur e máximum operator
protection.
• Effective high to low pressure gas exchange system.
• Capacitative Sensor, high pressure cutting head.
• Automatic mechanized Nesting power output control function.
• Automatic time and unit cost calculation function.
• Network connection from external.
• Smoke extraction (included in series models).
• 3 point reference sensor (sheet metal rotation detector).
• Collection of work pieces and trimmings.
• Dual proportional valve control system for different gas
pressures and special system for high pressure cutting.

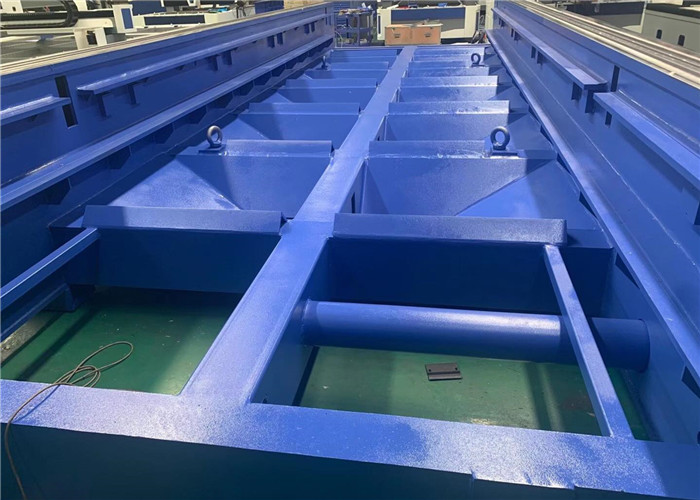

1. Designed with industrial heavy-duty steel structure, the
numerical control five-sided processing center can be shaped in the
first time, and can be used for a long time through numerical
control low-temperature annealing to ensure the strength and
stability of the machine.
2. Use high-precision ball screw or high-precision grinding rack,
and import high-precision linear guide with high precision, so as
to ensure long processing time and accuracy.
3. Adopt double drive ac servo drive motor, with stronger torque,
faster and more stable running speed.
4. Adopt imported laser lenses, with smaller focusing spots, more
fine cutting lines, higher working efficiency and better processing
quality.
5. Optical fiber transmission and flexible processing can achieve
equal quality cutting at any point.
Metal stainless steel plate laser cutting machine 1000w
The Max of 1000w can be cut 4mm
The Max of 2000w can be cut 10mm
The Max of 3000w can cut 12mm
Description of type configuration of shandong hongguang laser
cutting machine:
The itinerary is 1500*3000mm, 1500*4000mm, 1500*6000mm,
2000*4000mm, and 2000*6000mm (optional and customizable).
Power: 300w, 500w, 800w, 1000w, 1500w, 2000w, 3000w, 6000w
(optional).
Optional parts: exchange platform, large enclosure.
| Fiber Laser Cutting Machine Technical Parameters |
| Laser Type | Fiber laser |
| Laser Brand | IPG / Raycus |
| Laser Power | 500W (750W / 1000W /2000W/3000W/4000W optional) |
| Working area | 1500mmX3000mm 1300x2500mm 2000*4000mm Optional |
| Working Table | Fixed Working Table |
| Control System | PMAC full-closed loop servo control |
| Driving Mode | Double gear rack driving |
| Positioning Accuracy | 0.05mm |
| Protection System | Enclosure protection |
| Cutting Head | Precitec / Laser Mech / |
| Power Supply | AC380V ± 5% 50 / 60Hz |
| Total Power | 7KW~11KW |
| Standard Collocation | Metal nesting software, dual-pressure gas route of 3 kind gas sources, dynamic focus, remote controller,
etc. |
| Software | CutMax Laser Cutting Software or PA8000 software, Metal Nesting
Software |
| Supported Format | PLT, DXF, BMP, AI, DST, DWG, etc. |
