    White 300 Ton Press Brake High Precision Double Hydraulic Oil Cylinders

    Ask Lasest Price
    Brand Name : SMART CNC
    Model Number : WC67K-160/6000
    Certification : CE ISO TUV
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 50 set/month
    Delivery Time : 50 days
    • Product Details
    • Company Profile

    White 300 Ton Press Brake High Precision Double Hydraulic Oil Cylinders

    Direct-Sale Torsion Bar Synchronous NC Press Brake Machine 300ton 6m With DA41S Controller From China


    Standard configuration:

    The press brake machinery equipment is metal plate welded structure, with internal stress eliminated by vibration aging technology, high strength and good rigidity of machine.


    Double hydraulic oil cylinders are applied for upper transmission,provided with mechanical limit stopper and synchronize torsion bar,typical of stable and reliable operation, as well as high precision.


    Electrical control and manual fine-tuning mode are adopted for distance of rear stopper and stroke of gliding block, and fitted with NC controller.


    Multi-steps programming function is able to achieve an automatic operation and continous positioning of multi-steps procedures, as well as an automatic precision adjustment for positions of rear stopper and upper beam.


    The machine is provided with bend counting function, real-time display of processing quantity, power-failure memory of positions of rear stopper,upper beam, programs and parameters.

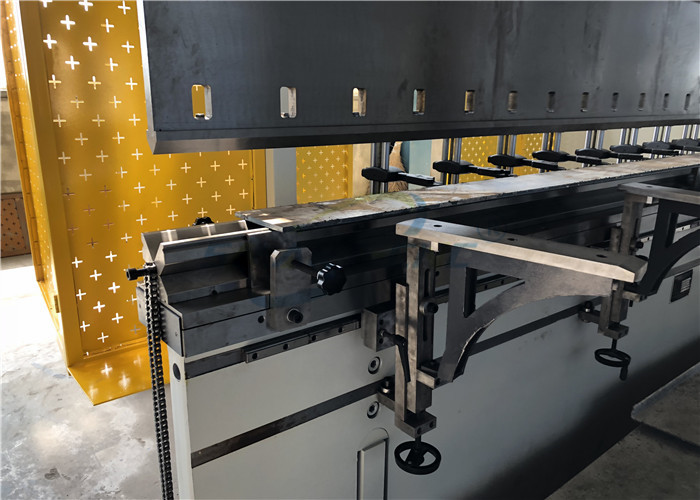

    Upper punch clamping fitted with deflection compensation device.

    Standard export equipments
    1 Motor Siemens beide(China)
    2 Gear pump Chengjie(China)
    3 Casting connector Cast.o(Italy)
    4 Main electric parts Siemens(Germany)
    5 Hydraulic system Rexroth(Germany)
    6 Sealing rings Valqua CO.(Japan)
    7 Linear bearing rod KBS(Hangzhou,China)
    8 Ball screw and line guide Hiwin(Taiwan,China)
    9 E21 DRO
    Estun(China)
    If you ask for CNC control system,we have E200,DA41,DA52 to choose from.

    WC67Y/WC67K Series Technical Parameters

    Model

    Nominal pressure

    (mm)

    Worktable length

    (mm)

    Distance between housings

    (mm)

    Throat depth

    (mm)

    Stroke

    (mm)

    Max. opening height

    (mm)

    Power

    (KW)

    Dimension

    LxWxH

    (mm)

    30T/1600300160012802008028531600x1000x1600
    35T/2000350200014802008028542000x1100x1800
    40T/2200400220018502301003205.52200x1200x1910
    40T/2500400250018502301003205.52500x1200x1910
    50T/2500500250018502301003205.52500x1200x2000
    63T/2500630250019002501003205.52500x1300x2210
    63T/3200630320025002501003205.53200x1300x2210
    80T/2500800250019003001003207.52500x1400x2300
    80T/3200800320025003201003507.53200x1500x2300
    80T/4000800400030003201003507.54000x1500x2400
    100T/25001000250019003201203207.52500x1600x2400
    100T/32001000320025003201203707.53200x1600x2600
    100T/40001000400030003201203707.54000x1600x2700
    125T/32001250320025003201203707.53200x1600x2600
    125T/40001250400030003201203707.54000x1600x2700
    160T/3200160032002500320200460113200x1700x2700
    160T/4000160040003000320200460114000x1700x2800
    160T/5000160050004000320200460115000x1900x3100
    160T/6000160060004940320200460116000x1900x3200
    200T/3200200032002500320200460113200x1950x2800
    200T/4000200040003000320200460114000x1950x2800
    200T/5000200050004000320200460115000x1950x3000
    200T/6000200060005000320200460116000x1950x3300
    250T/320025003200250040025059018.53200x2000x3200
    250T/400025004000300040025059018.54000x2000x3400
    250T/500025005000400040025059018.55000x2000x3400
    250T/600025006000500040025059018.56000x2000x3400
    300T/3200300032002530400250590223200x2000x3450
    300T/4000300040003000400250590224000x2000x3450
    300T/5000300050004000400250590225000x2000x3450
    300T/6000300060005000400250590226000x2000x3450
    400T/4000400040003000400250590304000x2180x3400
    400T/5000400050004000400250590305000x2180x3500
    400T/6000400060005000400250590306000x2180x3800
    500T/5000500050004000400250590455050x3500x3700
    500T/6000500060005000400320590456050x3500x3700
    600T/4000600040003000400320590554050x4500x3700
    600T/6000600060005000400320590556050x4500x3700
    800T/6000800060005000400320590556300x4500x6000

    Note: No notice if any changes of the above statistics made.
