    High Speed Mini Press Brake Machine 20 Ton 1200mm For Small Parts

    Ask Lasest Price
    Brand Name : SMART CNC
    Model Number : WE67K-20/1200
    Certification : CE ISO TUV
    Price : Negotiable
    Supply Ability : 50sets/month
    Delivery Time : 45 days
    • Product Details
    • Company Profile

    High Speed Mini Press Brake Machine 20 Ton 1200mm For Small Parts

    High speed small CNC press brake, mini bending machine 20ton 1200 for small parts mini press brake


    Main Specification

    CNC HYDRAULIC PRESS BRAKE MODEL:WE67K-20/1200
    TECHNICAL FEATURES
    1TypeCNC Hydraulic Press Brake Type
    2Nominal Pressure200KN
    3Working Table Length1200MM
    4Distance Between housings1330MM
    5Throat depth100mm
    6Ram Stroke (Slide Stroke)150mm
    7Main motor2.2kw
    8Max. Open Height300MM
    9CNC Control systemHolland DA66T 3D
    10Gross weight2200KGS
    11Dimension2000X1170X1950mm
    12Delivery time: 45days

    Main Features:
    1.Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.
    2.SMART CNC engineers utilize parametric 3D SolidWorks using FEM & DOE analysis as well as static and mechanism analysis.
    3. Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch-Rexroth, Germany,
    4. Mechanical synchronous meahanism and the complex compensation are designed so as to raise the workpieces precision.

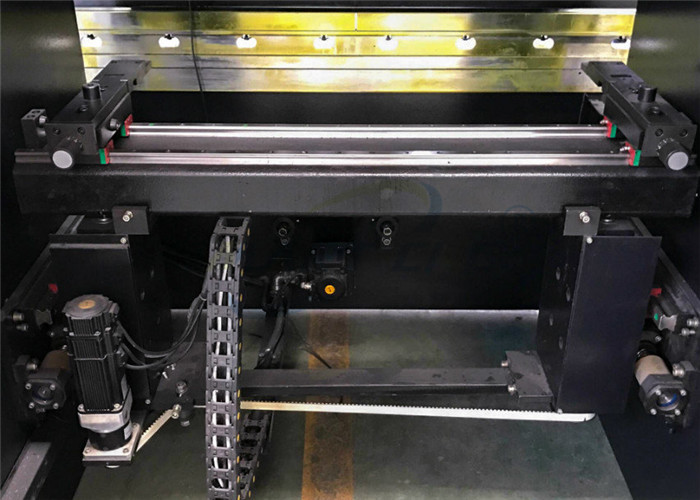

    5.The stroke and distance of the backgauge is adjusted by the motor and is well adjusted by hand,the adjustment is displayed by digital meters.
    6.Inch, single, continuous operation mode being designed for the machine and reversing and maintain time can be controlled by the time relays.
    7.Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.
