    Full Hydraulic CNC Plate Bending Rolling Machine For Cone Flange Pipe Tank

    Ask Lasest Price
    Brand Name : SMART CNC
    Model Number : W12-10×3000
    Certification : CE ISO TUV
    Price : Negotiable
    Supply Ability : 50 SETS/Months
    Delivery Time : 45days
    • Product Details
    • Company Profile

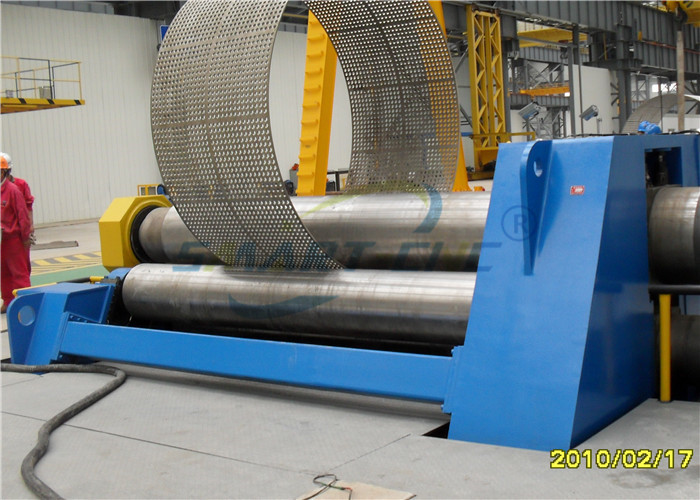

    Full Hydraulic CNC Plate Bending Rolling Machine For Cone Flange Pipe Tank

    Wrought Iron Sheet Metal Thin Thick Plate Forging Steel Forged Rolling Bending Machines For Cone Flange Pipe Tank


    W12-series CNC Four-roller bending machine with international advanced technology, controlled by PLC programmable numerically, all hydraulic driving, it's a heavy duty CNC rolling machine which can come true automatic bending, also it's the nesy equipment for bending multi section curved, square, round, conical and other special shape working piece.


    Optional Special Device

    Top support device
    Lower roller auxiliary drive
    Side support device
    Cone device
    Feeding roll-table
    Roller shaft grinding/ chrome encapsulating


    Design Characteristics

    Numerically control, roll forming by one time.
    Touch screen support visual input, edit, save 500 sets data.
    EPS electronic balance system, keep the rollers running parallel within 0.15mm.
    Support man-machine dialog, fault self diagnoise, operation error intelligent judgment.
    Drum shaped roller shaft, bending roundness, high straightness.
    All hydraulic driving, both side rollers doing line running inner the guide.
    The smaller central distance between two side rollers, come out the most correct bending presicion.
    Thickner whole-frame, meet the need of middle & larger bending.
    Machine frame integral quenching eliminate stress, never deformation.
    The roller shaft i whole forgin by quenching and tempering, hardening treatment process.
    Two control mode: manually and automatically.


    TECHNICAL PARAMETERS

    Model

    Max.bending thickness

    (mm)

    Pre-bending thickness

    (mm)

    Max.working length of rolls

    (mm)

    Yield limit

    (Mpa)

    Top roller diameter

    (mm)

    Bottom roller diameter

    (mm)

    Side roller diameter

    (mm)

    Main power

    (KW)

    W12-4X200043.520502451601401203
    W12-6X20006520502451901701504
    W12-8X200086.520502452101901705.5
    W12-10X200010820502452302101907.5
    W12-12X20001210205024527025021011
    W12-16X20001613205024530027022011
    W12-20X20002016205024533030024011
    W12-25X20002520205024536033025015
    W12-30X20003025205024539036030018.5
    W12-35X20003528205024543039033022
    W12-40X20004032205024546042036030
    W12-45X20004536205024551046039037
    W12-50X20005040205024555051042045
    W12-4X250043.525502451901701504
    W12-6X25006525502452101901705.5
    W12-8X250086.525502452302101907.5
    W12-10X2500108255024527025021011
    W12-12X25001210255024530027022011
    W12-16X25001613255024533030024011
    W12-20X25002016255024536033025015
    W12-25X25002520255024539036030018.5
    W12-30X25003025255024543039033022
    W12-35X25003528255024546042036030
    W12-40X25004032255024551046039037
    W12-45X25004536255024555051042045
    W12-4X300043.531002452101901705.5
    W12-6X30006531002452302101907.5
    W12-8X300086.5310024527025021011
    W12-10X3000108310024530027022011
    W12-12X30001210310024533030024011
    W12-16X30001613310024536033025015
    W12-20X30002016310024539036030018.5
    W12-25X30002520310024543039033022
    W12-30X30003025310024546042036030
    W12-35X30003528310024551046039037
    W12-40X30004032310024555051042045
    W12-50X30005040310024561056048055
    W12-60X30006048310024567062052075

    Description and specification given in this catalogue are subject to modification without notice.
