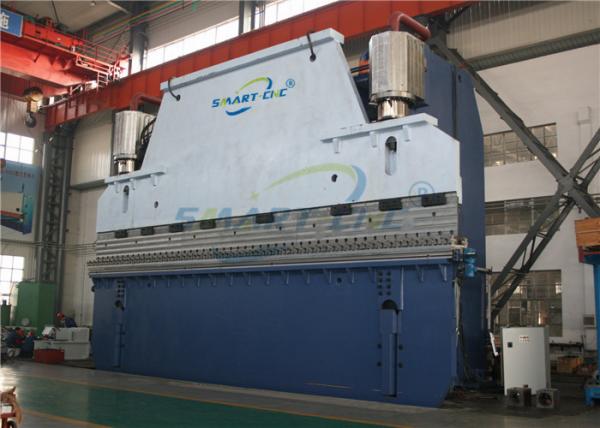

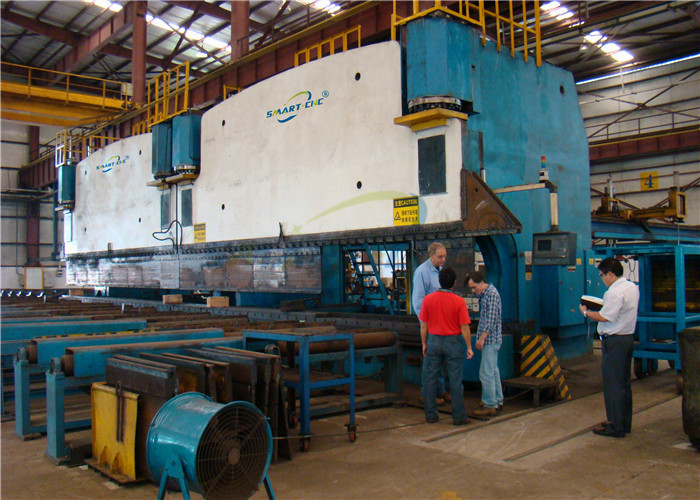

1000Ton 6m Heavy Duty CNC Hydraulic Press Brake Machine China For
30mm Thickness Mild Steel And Stainless Steel
The machine’s use
1. High productivity and good precision for metal sheets bending,
different up-die and bottom-die, working for multifarious pieces.
One-off bending shaped by one time stroke. Can make complex shapes
by repetitious bending work. Can punch with corresponding die.
2. Mechanical stopper in oil cylinder, typical of high feedback
precision for position of gliding block ,accurate and stable
operation,good synchronizing performance ,and high repeated
positioning precision of gliding block.
II, Machine’s configuration
1. Pretty appearance
2. Using UG analysis(finite element analysis),Optimize the deign
through the computer's assistant.
3. The whole machine is in sheet plate welded structure, with
internal stress eliminated by vibration
aging technology, high strength and good rigidity of machine.
4. Transform hydraulic pressure to engine.
5. With Germany skill to avoid inner reaction
6. The whole frame remove rust by sand paper, with antirust.
III,Stroke configuration
1. The machine is controlled by hydraulic electric, stroker can be
adjusted at random, stop moving,half automatic,automatic adjust and
test.
2. Double hydraulic oil cylinder is applied for upper transmission,
provided with mechanical limit stopper and synchronous torsion bar,
typical of stable and reliable operation, as well as high
precision.
3. In PUP has the function of time lacto and ensure the work
piece’s precision.
4. According to international standard ,the press angle precision
can be ±45´
5. With slowly falling function, the worker can control the machine
easily.
Main Specification
Type
Name | WE67K-63/2500 WE67K-80/2500 | WE67K- 100/3200 100/4000 | WE67K- 160/3200 160/4000 | WE67K- 200/3200 200/4000 | WE67K- 250/3200 250/4000 250/5000 250/6000 | WE67K- 300/3200 300/4000 300/5000 300/6000 | WE67K- 400/4000 400/5000 400/6000 400/7000 |
| Nominal pressure(KN) | 630 800 | 1000 | 1600 | 2000 | 2500 | 3000 | 4000 |
| Length of table(mm) | 2500 | 3200 4000 | 3200 4000 | 3200 4000 | 3200 4000 5000 6000 | 3200 4000 5000 6000 | 4000 5000 6000 7000 |
| Width of table (mm) | 150 | 160 | 250 | 250 | 250 | 250 | 250 |
Distance between uprights (mm)
| 2100 | 2600 3200 | 2600 3100 | 2600 3100 | 2600 3200 4000 4800 | 2600 3200 4000 4800 | 3200 4000 4800 5100 |
| Throat depth (mm) | 250 | 320 | 320 | 320 | 320 | 350 | 400 |
| Ram stroke (mm) | 100 | 100 | 200 | 200 | 250 | 250 | 320 |
| Max. open height(mm) | 320 | 320 | 425 | 450 | 500 | 520 | 630 |
Ram speed | Approaching (mm/s) | 200 | 180 | 160 | 150 | 120 | 100 | 90 |
Working (mm/s)
| 8-10 | 8-10 | 8-10 | 8-10 | 8-10 | 8-10 | 7-10 |
Returning (mm/s)
| 150 | 140 | 120 | 100 | 90 | 80 | 60 |
| Main motor power (KW) | 5.5 7.5 | 7.5 | 15 | 15 | 18.5 | 22 | 30 |
Overall dimensions | Length(mm)
| 2500 2584 | 3340 4084 | 3300 4100 | 3310 4100 | 3350 4150 5150 6150 | 3400 4200 5200 6200 | 4400 5400 6400 7400 |
| Width(mm) | 1720 1850 | 1885 | 1950 | 1950 | 2145 | 2150 | 2450 |
| Height(mm) | 2160 2210 | 2510 | 2750 | 2750 | 3120 | 3500 | 3655 |
Weight(kg)
| 5000 5600 | 8500 9500 | 11000 13000 | 11500 13500 | 18000 20500 24000 27000 | 23000 24000 26000 30000 | 30000 35000 40000 45000 |
Type
Name | 500/4000 500/5000 500/6000 500/7000 | 650/5000 650/6000 650/7000 650/8000 | 800/6000 800/7000 800/8000 800/10000 | 1000/6000 1000/7000 1000/8000 1000/10000 | 1200/6000 1200/7000 1200/8000 1200/10000 | 1600/7000 1600/8000 1600/10000 1600/12000 | 2000/8000 2000/10000 |
| Nominal pressure(KN) | 5000 | 6500 | 8000 | 10000 | 12000 | 16000 | 20000 |
| Length of table(mm) | 4000 5000 6000 7000 | 5000 6000 7000 8000 | 6000 7000 8000 10000 | 6000 7000 8000 10000 | 6000 7000 8000 10000 | 7000 8000 10000 12000 | 8000 10000 |
| Width of table (mm) | 400 | 400 | 550 | 550 | 550 | 550 | 800 |
Distance between uprights (mm)
| 3200 4000 4800 5100 | 4000 4800 5100 6100 | 4800 5100 6100 7800 | 4800 5100 6100 7800 | 4800 5100 6100 7800 | 5100 6100 7800 9100 | 6200 8000 |
| Throat depth (mm) | 400 | 500 | 500 | 600 | 600 | 600 | 800 |
| Ram stroke(mm) | 350 | 320 | 400 | 400 | 400 | 400 | 400 |
| Max. open height(mm) | 630 | 650 | 820 | 920 | 920 | 920 | 1500 |
Ram speed | Approaching (mm/s) | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
Working (mm/s)
| 7 | 7 | 7 | 6 | 6 | 6 | 6 |
Returning (mm/s)
| 55 | 55 | 55 | 45 | 45 | 45 | 54 |
| Main motor power (KW) | 37 | 45 | 55 | 2×37 | 2×45 | 2×55 | 2×55 |
Overall dimensions | Length(mm)
| 4500 5500 6500 7500 | 5500 6500 7500 8500 | 6500 7500 8500 10500 | 6500 7500 8500 10500 | 6500 7500 8500 10500 | 7500 8500 10500 12500 | 8500 10450 |
Width (mm) | 2700 | 3075 | 3400 | 3500 | 3600 | 3660 | 4480 |
| Height(mm) | 4400 | 4500 | 5300 | 5370 | 5750 | 5950 | 6500 |
Weight(kg)
| 45000 47000 56000 62000 | 60000 65000 70000 76000 | 96000 105000 116000 130000 | 110000 120000 136000 165000 | 132000 144000 156000 180000 | 160000 195000 230000 260000 | 240000 260000 |
