    Horizontal Auto V Grooving Machine Anti Rust Low Energy Consumption

    Ask Lasest Price
    Brand Name : SMART CNC
    Model Number : RGEK-1500×4000
    Certification : CE ISO TUV
    Price : Negotiable
    Payment Terms : Western Union, T/T, L/C, MoneyGram
    Supply Ability : 50 sets/month
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    Horizontal Auto V Grooving Machine Anti Rust Low Energy Consumption

    CNC Hydraulic Automatic V Cutting Machine For Sheet Matel Grooveing,CNC V Cutting Slotting Machine

    Features:
    1) RGHK series V-grooving machine is an upgrade product of traditional planer.
    2) RGHK high-speed CNC grooving machine for thin plate adopts precision ball screw as power transmission component, which with high machining accuracy is especially important for high-grade products.
    3) For material clamping device, hydraulic system is used as power , it brings high pressure, reliable fastening, low noise and low energy consumption.
    4) Adopt frame structure, connected with high strength bolt, through heat treatment to eliminate stress of worktable, to ensure overall rigidity and reduce deformation.
    5) When this machine working, the beam is fixed, the workpiece is conveyed by after by back-feed mechanism. The working surface is made of carbon steel,the high frequency surface hardness achieve 55 to 60 HRC after quenching (ordinary mesa < 30 HRC), which makes workbench is stiffer than stainless steel, it keeps the workbenth surface flatness ≤±0.03mm, avoid scratches caused of low hardness. This technology makes sure the precision of v groove and extends the service life of the equipment.
    6) There are supporting devices equipped in the front and back of the workbenth to prevent scratching the metal plate material in the process.

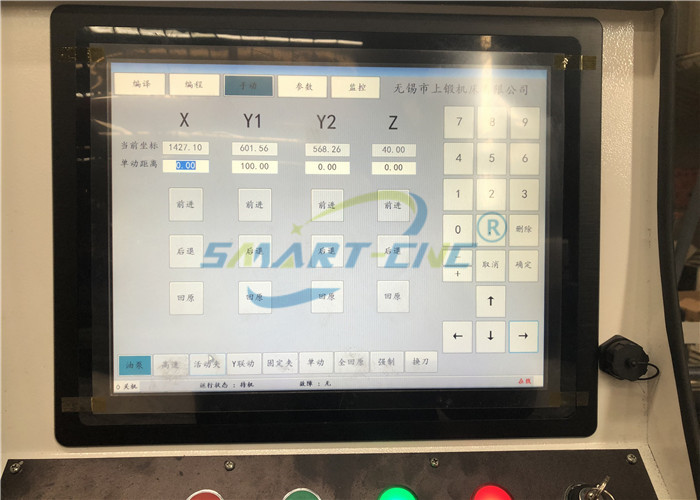

    7) The CNC system is easy to master and operate. As long as the processing parameters are input, the equipment will be processed automatically, and there are multiple interlocking safeguards to ensure the safe operation of the equipment.
    8) Mainly electrical components are imported, in line with international standards, safe and reliable, long life, anti-interference ability, and electric control cabinet is equipped with heat sink.

    2. Main specification

    No



    Technical data
    Model

    3200400050006000Unit
    1The width of grooving1250/15001250/15001250/15001250/1500mm
    2The length of length3200400050006000mm
    3The thickness of grooving(Stainless steel)4444mm
    4The Min thickness of plate0.40.40.40.4mm
    5Min side distance V8888mm
    6X axis working speed70707070m/min
    7X axis return speed80808080m/min
    8Y1 axis max distance1250125012501250mm
    9Y1 axis move speed20202020m/min
    10Y1 axis resolution0.0010.0010.0010.001mm
    11Repeat positioning accuracy±0.01±0.01±0.01±0.01mm
    12Z axis resolution0.0010.0010.0010.001mm
    13Repeat positioning accuracy±0.01±0.01±0.01±0.01mm
    14Motor powerX axis5.55.55.55.5KW
    Y1.Y2.Z axis1111KW
    15Machine sizelength5430623072308230mm
    width2230/24802230/24802230/24802230/2480
    high1560156015601560
    15Machine weight7500/80008000/86009000/980010000/11000KGS

    3. Configuration

    NoNameBrand
    1CNC systemJapan
    2Hydraulic systemTaiwan famous brand
    3Frequency converterMitsubishi,Japan
    4Servo motorMitsubishi,Japan
    5Seal ringVALQUA,Japan
    6MotorSEW,Germany
    7Air switchSchneider
    8ContactorSchneider
    9Breaker and buttonSchneider
    10RelaySchneider
    11BladesKORLOY,Korea
    12Linear guideHINWIN, Taiwan
    13Wire

    IGUS, Germany
