Mechanical Eccentric C Frame Power Press Machine 100 Ton With Single Crank

Ask Lasest Price
Brand Name :	SMART CNC
Model Number :	JH21-100
Certification :	CE ISO TUV
Price :	Negotiable
Supply Ability :	50 sets/months
Delivery Time :	45days

Add to Cart

Product Details
Company Profile

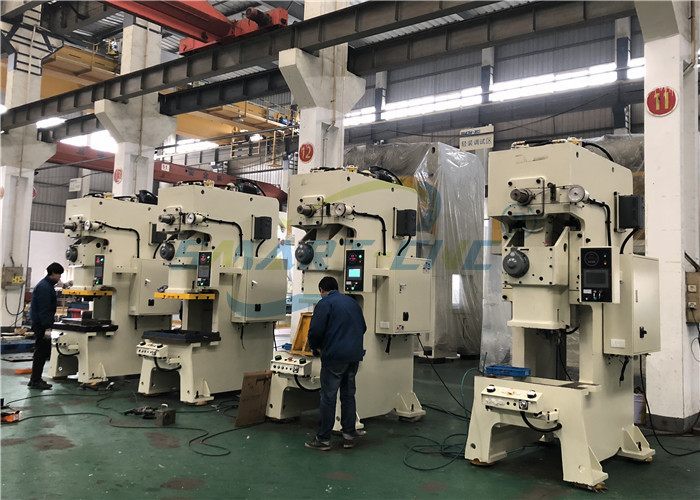

Mechanical Eccentric C Frame Power Press Machine 100 Ton With Single Crank

JH21 Mechanical Eccentric 100 Ton C Frame Power Press Machine With Single Crank

Features:

1. Steel welded body, tempering treatment or VSR(Vibratory Stress Relief), high rigidity, accuracy and stability;

2. Vertical located crankshaft, compact structure;

3. The crankshaft undergoes grinding treatment after high frequency quenching;

4. Lengthened six-face rectangle guide with a surface of bronze plate;

5. Pneumatic dual balance cylinders, which balance the slide and punch weight to reduce noise and impact;

6. PLC control and imported safety duplex valve;

7. Wet type combined multi discs friction clutch and brake;

8. Hydraulic overload protected.

Standard Equipments:

1) Wet clutch

2) PLC

3) Hydraulic overload protecting pump

4) Touch screen

5) Cam controller

6) Die height adjusted motor (JH21-60 and upon models)

7) Auto lubrication system

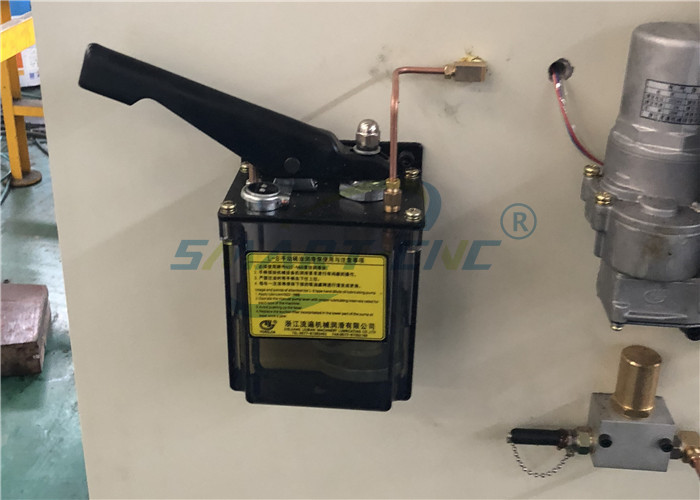

8) Manual lubrication system

9) Double hand control panel

10) Electronic crankshaft angle indicator

11) Predetermined counter

12) Balance cylinders for slide and upper die

13) Work light

14) Joint for air

15) Joint for miss-feeding

16) Absorbing pads

Optional Equipments:

1) Dry clutch

2) Light curtain

3) Foot pedal

4) Die cushion

5) Inverter

6) Variable speed motor

7) Auto feed shaft

8) Die quick change device

Specification

JH21 series cnc metal plate hole and aluminum punching machine 160ton
Type Item	Unit		JH21-100T
Nominal pressure	KN		1000
Stroke of nominal force	mm		6
Stroke of sliding block	mm		200
Number of strokes	s.p.m		45
Max. Height for die loading	mm		400
Adjustment range for die loading height	mm		100
Distance from slide block centre to the frame	mm		390
Space between columns	mm		720
Bottom size of sliding block	L.R.	mm	700
Bottom size of sliding block	F.B.	mm	580
Hole size for die handle	Dia.	mm	70
Hole size for die handle	Depth	mm	90
Size of worktable	L.R.	mm	1170
	F.B.	mm	760
	Material discharge hole size	mm	180
	Thickness	mm	160
Distance from worktable to ground	mm		900
Power of motor	KW		15
	F.B.	mm	2325
	L.R.	mm	1450
	Height	mm	3250
Total weight	KG		12800
