WC67Y/K NC 80T Metal Steel Sheet Plate Bending Machine Hydraulic
Press Brake For Metal Working
Products Description
Bending machine is the use of the mold (general or special mold) to
bend the cold metal sheet into various geometric sections of the
workpiece. 1.The main mechanical structure of a machine tool is
composed of frame, column, slider, worktable, main cylinder, back
carrier and other parts. Through finite element analysis and
optimization design by three-dimensional software, the structure
strength and rigidity of each main component can be fully ensured.
2.Internal stress of welded parts can be eliminated by tempering
and vibration aging.
3.The oil cylinders fitted on both sides adopt closed loop control
mode which is composed of Germany electro-hydraulic servo valve and
imported grating ruler, breaking through the stroke control mode of
traditional mechanical stop bending machine, ensuring the high
precision of the glide position, the accurate and stable operation,
the high precision of bending.
Working Source | Hydraulic |
Bending Material | Carbon steel, stainless steel, aluminum, mild steel |
Controller | NC Controller, E21, E220P, DA41, CT12 |
Press Brake Usage | Bending plate into different Angle Curling Plate into Hinge
Flattening plate |
Voltage | 220V/380V according to customer request |
Tooling | A set of standard tooling |
Specifications

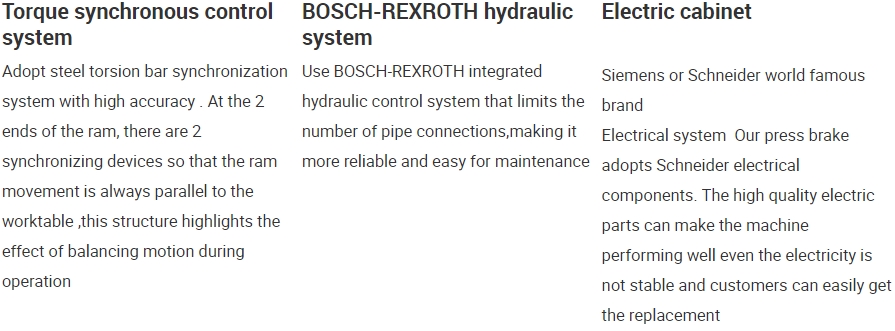

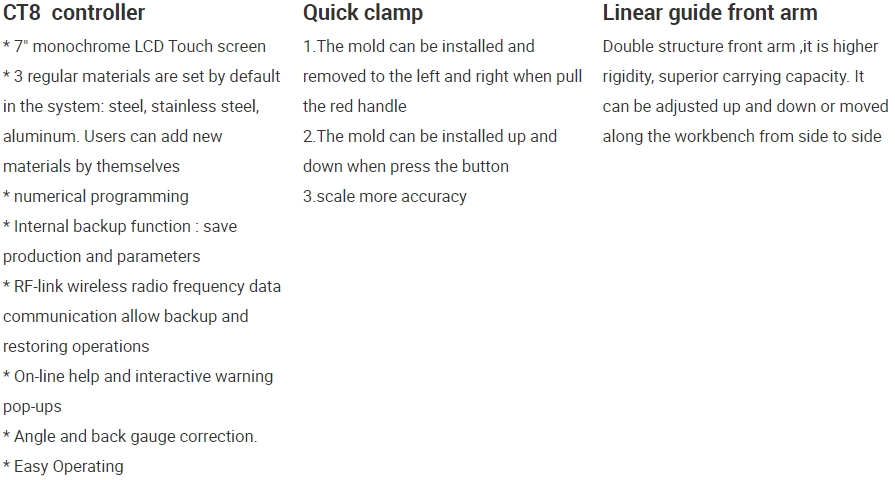

Configurations

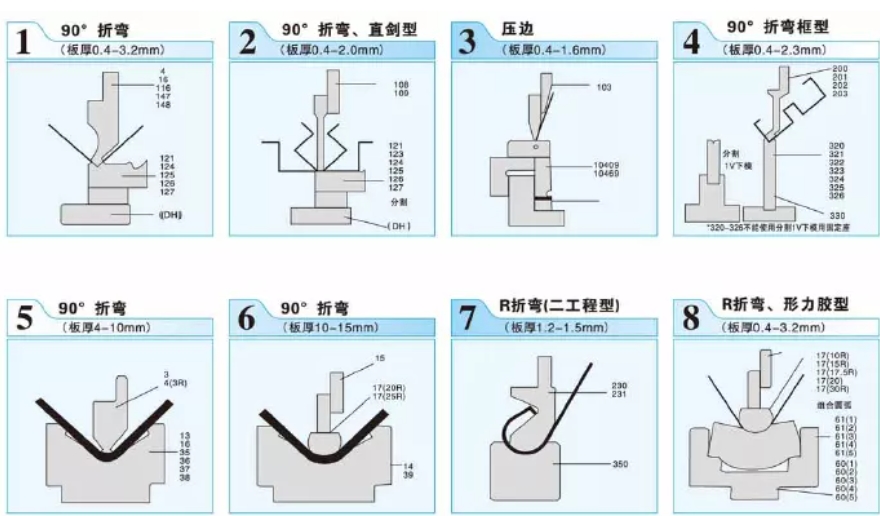

Application
The folded sheet metal bending machine has high productivity and
high working accuracy, using different shapes of up and down mould,
can be bent into various shapes artifacts, slider stroke at a time
can be to a bending forming of sheet metal, after a lot of bending
can be achieved relatively complex shape workpiece, when equipped
with the corresponding equipment, can also make a punch.
Features
1.Standard two axis control (X.Y).
2.Mechanical torque synchronization(torsion bar).
3.The whole machine is in sheet plate welded structure, with
internal stress eliminated by vibration aging technology, ensure
machine high strength and good rigidity.
4.Electrical control and manual fine-tuning mode are adopted for
distance of rear stopper and stroke of slider, and installed with
digital display device, easy and quick for operator.
5.Quick clamping is equipped,it is convenient for operator to
install and get offer punch.
Company Profile
WUXI SMART CNC EQUIPMENT GROUP CO.,LTD founded in 1988, occupying
120,000.000 square meter with more than 400 employees and is
composed of highly trained and qualified machine operators and
assembly technicians supported by staff of experience engineers and
designers, and making it is one of the largest manufactures of
sheet metal fabricating machinery in China. SMART CNC EQUIPMENT
GROUP is a leader Manufacturer Factory of Metal Forging Machine.
Such as CNC Pipe bending machine, Shearing Machine, Press Brake
Machine, Plate Rolling Machine, Profile Bending Machine, Hydraulic
Press Machine, Notching Machine, Iron Worker Machine, CNC Laser
Cutting Machine, Roll forming machine etc. Meanwhile we're familiar
with kinds of Processing Machines to help our clients choose the
most suitable machine on the best quality by economically. We
continued to strengthen research and development of new products,
introduce the CNC technology which come from Italy and Germany. CNC
press brake, CNC fiber laser cutting machine that we produced have
achieve a real sense of CNC automatic control and improve the
productivity greatly. To control the quality strictly and to ensure
the customers satisfaction, the company achieved a product with
strict control from design, manufacture process, inspection until
the whole machine delivery, installation and service. SMART CNC
will keep enterprising in the corporate spirit of "credit,
collaboration, pragmatism and innovation" and sincerely hope to
make progress together and jointly create brilliant with friends of
all circles.
