High-Precision DA53T CNC Hydraulic Press Brake Machine
Products Description
CNC Press Brake Machine
(1) Brand-new industry design combined with modern aesthetic
concept, high-quality production technology, simple appearance. (2)
Latest high-frequency responding hydraulic control technology,
faster, more efficient and accurate. (3) Heat treatment of the
rack, rigidity optimization verification on entire machine and the
application of hydraulic crowning structure jointly ensure the
bending precision of WE67K series Press Brakes. (4) Optimal ratio
of parameters and core configuration ensure stable performance, and
easy operation. (5) DA53T controller is equipped with standard 3+1
axis (Y1, Y2, X axis and W axis crowning). Additionally, the
optional axis can be used for R axis or Z axis. At the same time,
suitable die can be selected to realize bending processing of
various workpieces with complex shapes. (6) The Press Brake adopts
full closed-loop electro-hydraulic servo synchronous control
technology. The position signal of the slide block is fed back to
the CNC controller by the grating ruler on both sides, and then CNC
controller controls the opening size of the synchronous valve and
adjusts the quantity of the oil cylinder, so as to control the
slide block (Y1,Y2) to run at the same frequency and always keep
the parallel state to the working table. (7) CNC controller will
automatically control the deflection compensation of the worktable,
in order to achieve uniform angle on full length of the workpiece
according to machine process state. (8) Using hydraulic crowning
methodor mechanical crowning method, the workpiece with uniform
precision over the whole length of the worktable can be obtained.
The hydraulic crowning is composed of a group of oil cylinders in
the lower working table, which can make the working table move
relative to each other and form an ideal curve with convection to
ensure the relation between the relative position of the sliding
block and the bearing force remains unchanged. The compensation
amount is determined by the CNC controller according to the
thickness of the plate and the material characteristics.

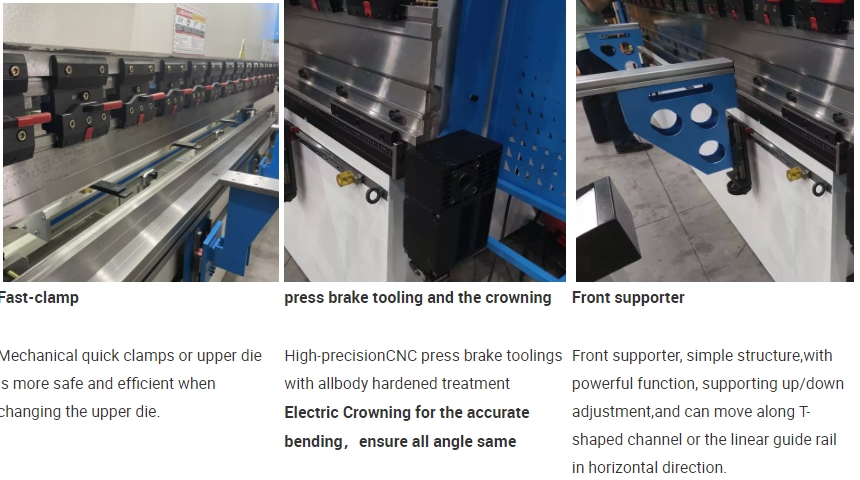

Detailed Images
HYDRAULIC SYSTEM
■ Pipe Connection: * All pipe connection using the EMB from Germany
Brand.
■Hydraulic System: * Adopt integrated hydraulic control system,
more reliable &easy for maintenance. The hydraulic system is
the from Bosch - Rexroth, Germany.
Backgauge
* High-precision backgauge device, ball screw and linear guider
rail.
*Equipped with light-sensitive limit switch, improving limit
accuracy.
*It is driven by steep motor and inverter with high positioning
accuracy, unique designed synchronous transmission
mechanism,reliable and stable.

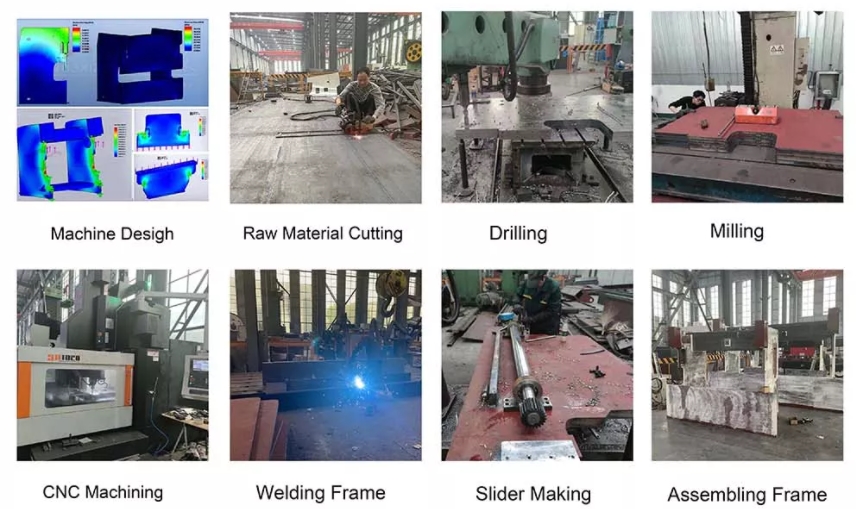

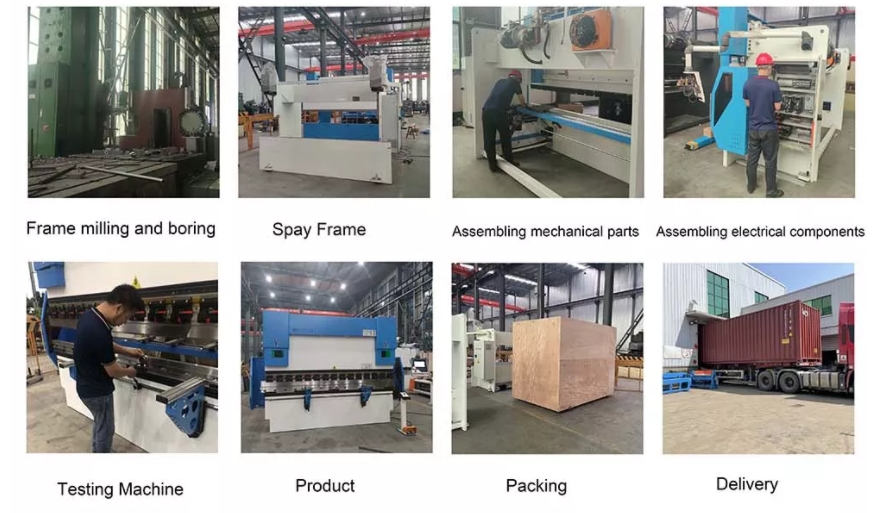

Production Process
Product Parameters
Standard Configurations
|
| NC Control system | E21 E300 DA41 DA53S DA56S DA66T DA69T |
| Electrical components | Schneider Electrical from French |
| Main Motor | Siemens from Germany Brand |
| BackGauge & RAM Drive | Inverter from Taiwan delta |
| Travel switch | Schneider Electrical from French |
| Foot switch | KACON from South Korea |
| Hydraulic System | Bosch-Rexroth form Germany |
| Hydraulic Pump | SUUNY or SAEMP form Taiwan |
| Sealing Element | PARKER from U.S.A Brand |
| Tubing connector | EMB form Germany Brand |
| Ball screw/ Polished rod | HIWIN from TaiWan Brand |
|
| Warning of high oil temperature | ■Yes □No |
| High oil pressure protection | ■Yes □No |
| Motor overload protection | ■Yes □No |
| Oil inlet filter jammed warning | ■Yes □No |
| Laser Safety Protection | □Yes ■No |
| Left & Right side protection | ■Yes □No |
| Electricity leakage protection | ■Yes □No |
| Safety Relay | □Yes ■No |
| Monitoring and Redundant valves | □Yes ■No |
| Safety standards | ■CE □CSA □NR-12 □OSHA |
Company Profile
WUXI SMART CNC EQUIPMENT GROUP CO.,LTD founded in 1988, occupying
120,000.000 square meter with more than 400 employees and is
composed of highly trained and qualified machine operators and
assembly technicians supported by staff of experience engineers and
designers, and making it is one of the largest manufactures of
sheet metal fabricating machinery in China. SMART CNC EQUIPMENT
GROUP is a leader Manufacturer Factory of Metal Forging Machine.
Such as CNC Pipe bending machine, Shearing Machine, Press Brake
Machine, Plate Rolling Machine, Profile Bending Machine, Hydraulic
Press Machine, Notching Machine, Iron Worker Machine, CNC Laser
Cutting Machine, Roll forming machine etc. Meanwhile we're familiar
with kinds of Processing Machines to help our clients choose the
most suitable machine on the best quality by economically. We
continued to strengthen research and development of new products,
introduce the cnc technology which come from Italy and Germany. CNC
press brake, cnc fiber laser cutting machine that we produced have
achieve a real sense of CNC automatic control and improve the
productivity greatly. To control the quality strictly and to ensure
the customers satisfaction, the company achieved a product with
strict control from design, manufacture process, inspection until
the whole machine delivery, installation and service. SMART CNC
will keep enterprising in the corporate spirit of "credit,
collaboration, pragmatism and innovation" and sincerely hope to
make progress together and jointly create brilliant with friends of
all circles.

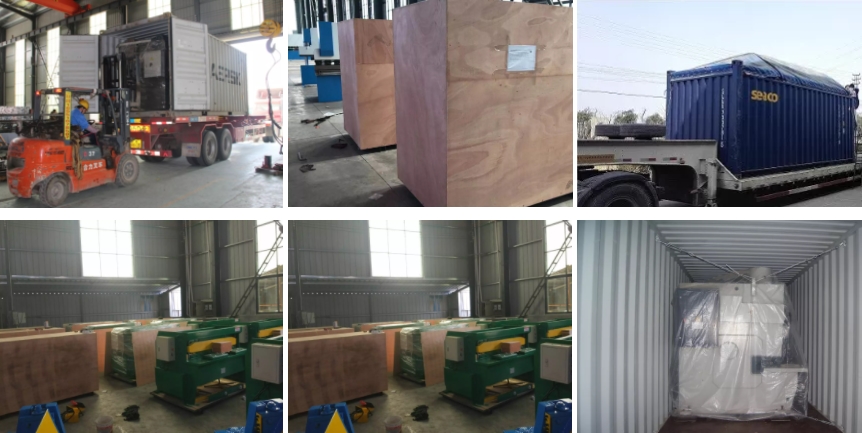

Packing and Shipping
