Double Heads Tube Bending Machine
Chosen for its unparalleled productivity, the double heads tube
benders SW series is able to make 2 bends X Multiple tubes
simultaneously.
Here are some of the advantages of this Globally Patented design:
• Standard with 90° head rotation for Tube Bending
• Stationary clamps to maintain the tube in position before bending
• Arc movement of the bending heads allows high production rates
• Low setup times with quick-change tooling design and readout for
length and angle settings
• Production speed: 3.8 seconds (25.4 mm X 2t X 90°, 2 tubes at one
time)(Tube Diameter 12mm,3 tubes at one time)

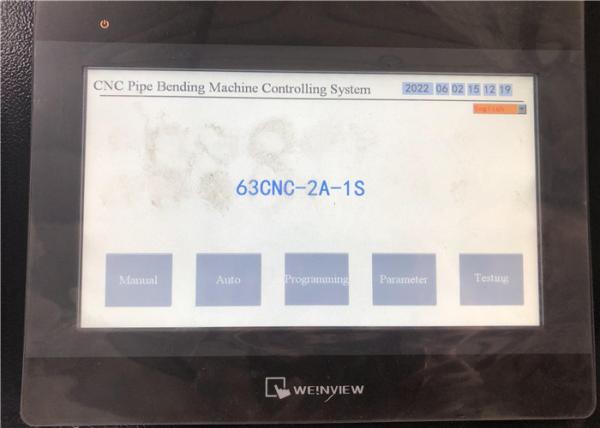

• PLC control for easy operation and maintenance
• Full-cycle bending + half-cycle bending
Individual bending angle setting for each bending head
Readouts for the settings of the bending angles and straight
distance between bends
Can process 2 bends and 2 tubes to X Multiple tubes (depands on
tube diameter)at the same time
Center distance between bends from 110 mm to 1,800 mm
Double heads pipe bender can be divided into standard type (SW38)
and rotary type (SW38A) according to structure of the base. The
head of the rotary type bender (SW38A) can adjust the angle of
elbow freely, but it shall consider the material feed problem.
Product Description
| Brand Name: | SMART CNC |
| Model Number: | SW25B/SW38/SW38A/SW50/SW50A |
| Type | NC CONTROL SEMI-AUTOMATIC |
| Certification: | CE/SGS/TUV/ISO |
| Place of Origin: | China |
| Application | Pipes or solid bars,various materials such as steel, stainless,
aluminum and copper |
| Packaging Details | Packed in stretch film firstly,and then reinforced with plywood for
outer packing |
Product Features:
1. It can be divided into standard type (SW25) and rotary type
(SW25A) according to structure of the base. The head of the rotary
type bender (SW25A) can adjust the angle of elbow freely, but it
shall consider the material feed problem.
2. As it is controlled by microcomputer, it is easy to operate and
maintain it.
3. It can be operated full circularly or semi circularly and can be
used for the volume production of symmetrical products at both
sides.
4. The head of machine on the left and right can be adjusted
rapidly and they are securely fastened. During bending, the center
distance of two shafts will not deflect easily.
5. The bending angle can be adjusted with high precision and it
meets the requirements of strict standard.
6. One or two tubes can be bent in one time according to its size,
material and outer diameter.
Standard Accessories:
1. One pair of mould, one set of retaining device
2. One set of common tools
3. The head can turn for 90° inside and outside
DOUBLE HEADS PIPE BENDER MAIN TECHNICAL SPECIFICATION (NC CONTOL
SERIES)
| Model | Bending Capacity (mm) | Range Of Bending Radius (mm) | Center Distance Between Bends (mm) | Head Rotation |
| SW25B | OD 25.4 | 25 ~ 150 | 110 ~ 1200 | / |
| SW38 | OD 38.1 | 38 ~ 200 | 170 ~ 1600 | / |
| SW38A | OD 38.1 | 38 ~ 200 | 170 ~ 1600 | 0°~ 90° |
| SW50 | OD 50.8 | 50 ~ 300 | 200 ~ 1800 | / |
| SW50A | OD 50.8 | 50 ~ 300 | 200 ~ 1800 | 0°~ 90° |
