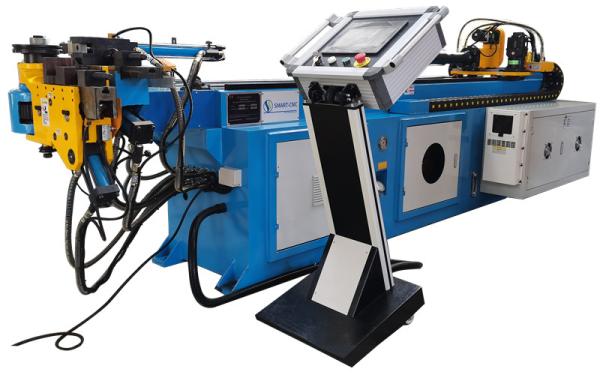

    Round Square Steel Metal Pipe Bending Machine CNC Fully Auto

    Ask Lasest Price
    Brand Name : SMART CNC
    Model Number : M18CNC -3A-1S -4A-3S -5A-2S -5A-3S
    Certification : CE, ISO, TUV
    Price : USD5000~USD100000
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 50 sets/months
    Delivery Time : 45-60 working days
    • Product Details
    • Company Profile

    Round Square Steel Metal Pipe Bending Machine CNC Fully Auto

    CNC Fully Auto Electric Hydraulic Mandrel Bender Round Square Steel Metal Chair Future SS MS Pipe Bending Machine


    Product Description

    1. Bending pipe with servo motor drive, high precision bending angle and compensation value (3 axis or more).

    2. Corner and feeding is drived by servo motor, high efficiency, accurate bending angle and feeding.

    3. With automatic detection error and fault function, and it the screen display, so that the operator can be easy to remove obstacles.
    4. All processing information by the touching screen input.
    5. Each bending pipe can set the compensation value, speed, release gap according to different material.
    6. A pipe per bending all individually preparing five action sequence and 10 sections of speed, allows the operator the match the use, improve work efficiency, reduce the fitting interference points.

    7. SZ-SLS CNC Hydraulic Automatic Pipe Bending Machine Equipped with PLC or IPC Which Manage Bending (Y), Feeding (X) &

    8. Rotation (Z) In a Complete Automatic Cycle.
    Bending (Y-Axis): Controlled by Servomotor or by Hydraulic.
    Feeding (X-Axis): Controlled by Servomotor.
    Rotating (Z-Axis): Controlled by Servomotor.
    9. We Only Use Popular Quality Components In The Production of Our Benders From Such Companies As JAPAN MIYSUBISHI, TAIWAN, WEINVIEW, JAPAN YUKEN, JAPAN NEIMICOM, SKF AND ETC.
    10. This Value Priced CNC Tube Bending Machine Is An Excellent Choice for General Purpose and Any Type of Conventional Tube Bending Applications.

    Features on CNC Hydraulic Automatic Pipe Bending Machine

    * Interactive PLC Touch Screen Offers Easy Access to Auto and Manual Operating Modes.

    * System Diagnostics and Multiple Language Capability.

    * Fully Hydraulic Clamping on Clamp Die and Pressure Die.

    * Bending Axis-Driven by Cylinder or Servo Motor,Feeding Axis-Driven by Servo Motor,Rotating Axis-Driven by Servo Motor.

    * Equipped with Adjustable Speed Valve on Pressure Die Ensures the Synchronization of Bending.

    * Air Cooling System or Water Cooling System Ensures the Equipment Long-Time Work Stably Under the High

    Temperature.

    * CE, ISO &TUV.

    Specification

    Model

    M18CNC

    -3A-1S

    -4A-3S

    -5A-2S

    -5A-3S

    Bending CapacityØ18X2mm
    Range of Bending Radius5-80mm
    Max. Bending Degree190°
    Mandrel Length1500mm
    Touch Screen

    Taiwan

    Weinview

    Bending Accuracy±0.1°
    Rotating Accuracy±0.1°
    Feeding Accuracy±0.1mm

    Application Industry

    FurnitureBoilerExhaustShipyard /oil rig
    Head restHeavy vehicle cabinGreen houseHealth care
    Aerospace/aviationSerpentine bendingFitnessBrake line
