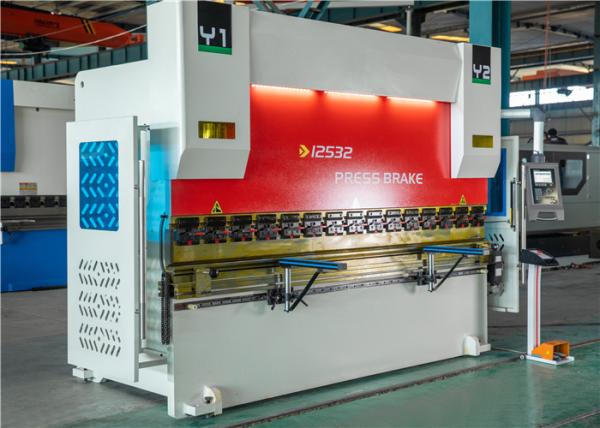

    200 Ton CNC Hydraulic Press Brake Machine For Stainless Steel

    Ask Lasest Price
    Brand Name : SMART CNC
    Model Number : PB6-110/3100
    Certification : ce,ISO9001
    Price : 9000-15000 USD
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 20 sets/months
    Delivery Time : 2 months
    • Product Details
    • Company Profile

    200 Ton CNC Hydraulic Press Brake Machine For Stainless Steel

    Hydraulic Press Brake Machine,High Quality Cnc Bending Machine Mesin Bending Press Brake 200 Ton

    1. Totally EU streamlined design. Monobloc by welding robots & apparatus and stress relief process by annealing treatment.
    2. Hydraulic top-drive, steadiness and reliability, mechanical stop, steel torsion bar to maintain synchronization, high precision.
    3. Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch Rexroth, Germany.
    4. Travel limit protection, full machine guarding with safety interlocker.
    5. Mechanical synchronous mechanism and the complex compensation are designed so as to raise the workpieces precision.
    6. The stroke and distance of the back gauge is adjusted by the motor.
    7. Inch, single mode being designed for the machine and reversing and maintain time can be controlled by the time relays
    8. Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.
    9. Standard punches and dies. Front arm material support. Foot pedal with emergency stop.
    10. Control system: Estun NC E21, CNC DELEM DA41, DA52, DA66T.

    Type
    Nominal Force
    Worktable Length
    Poles Distance
    Throat Depth
    Stroke
    Max Open
    Power
    Dimension
    (KN)
    (mm)
    (mm)
    (mm)
    (mm)
    (mm)
    (KW)
    L*W*H(mm)
    30T/1600
    300
    1600
    1280
    200
    80
    285
    3
    1600*1000*1600
    35T/2000
    350
    2000
    1480
    200
    80
    285
    4
    2000*1100*1800
    40T/2200
    400
    2200
    1850
    230
    100
    320
    5.5
    2200*1200*1910
    40T/2500
    400
    2500
    1850
    230
    100
    320
    5.5
    2500*1200*1910
    50T/2500
    500
    2500
    1850
    230
    100
    320
    5.5
    2500*1200*2000
    63T/2500
    630
    2500
    1900
    250
    120
    320
    5.5
    2500*1300*2210
    63T/3200
    630
    3200
    2500
    250
    120
    320
    5.5
    3200*1300*2210
    80T/2500
    800
    2500
    1900
    300
    120
    320
    7.5
    2500*1400*2300
    80T/3200
    800
    3200
    2500
    320
    120
    350
    7.5
    3200*1500*2300
    80T/4000
    800
    4000
    3000
    320
    120
    350
    7.5
    4000*1500*2400
    100T/2500
    1000
    2500
    1900
    320
    160
    320
    7.5
    2500*1600*2400
    100T/3200
    1000
    3200
    2500
    320
    160
    370
    7.5
    3200*1600*2600
    100T/4000
    1000
    4000
    3000
    320
    160
    370
    7.5
    4000*1600*2700
    125T/3200
    1250
    3200
    2500
    320
    160
    370
    7.5
    3200*1600*2700
    125T/4000
    1250
    4000
    3000
    320
    160
    370
    7.5
    4000*1600*2700
    160T/3200
    1600
    3200
    2500
    320
    200
    460
    11
    3200*1700*2700
    160T/4000
    1600
    4000
    3000
    320
    200
    460
    11
    4000*1700*2800
    160T/5000
    1600
    5000
    4000
    320
    200
    460
    11
    5000*1900*3100
    160T/6000
    1600
    6000
    4940
    320
    200
    460
    11
    6000*1900*3200
    200T/3200
    2000
    3200
    2500
    320
    200
    460
    11
    3200*1950*2800
    200T/4000
    2000
    4000
    3000
    320
    200
    460
    11
    4000*1950*2800
    200T/5000
    2000
    5000
    4000
    320
    200
    460
    11
    5000*1950*3000
    200T/6000
    2000
    6000
    5000
    320
    200
    460
    11
    6000*1950*3300
    250T/3200
    2500
    3200
    2500
    400
    250
    460
    18.5
    3200*2000*3200
    250T/4000
    2500
    4000
    3000
    400
    250
    590
    18.5
    4000*2000*3400
    250T/5000
    2500
    5000
    4000
    400
    250
    590
    18.5
    5000*2000*3400
    250T/6000
    2500
    6000
    5000
    400
    250
    590
    18.5
    6000*2000*3400
    300T/5000
    3000
    5000
    4000
    400
    250
    570
    22
    5100*2600*4000
    300T/6000
    3000
    6000
    5000
    400
    250
    570
    22
    6100*2600*4200
    300T/7000
    3000
    7000
    5620
    400
    250
    570
    22
    7100*2600*4400
    320T/7000
    3200
    7000
    5620
    400
    250
    570
    22
    7100*2600*4400
    350T/6000
    3500
    6000
    5100
    450
    250
    570
    30
    6100*2600*4200
    350T/7000
    3500
    7000
    5620
    450
    250
    570
    30
    7100*2500*4500
    400T/4000
    4000
    4000
    3100
    350
    300
    620
    30
    4100*2700*3800
    400T/6000
    4000
    6000
    4820
    400
    320
    620
    30
    6100*2800*4200
    400T/6500
    4000
    6500
    5100
    400
    320
    620
    30
    6600*2800*4300
    500T/5000
    5000
    5000
    4100
    400
    320
    620
    37
    5100*3000*4400
    500T/6000
    5000
    6000
    4820
    400
    320
    620
    37
    6100*3000*4700
    500T/7000
    5000
    7000
    5620
    400
    320
    620
    37
    7100*3000*4900
    600T/6000
    6000
    6000
    4820
    400
    320
    620
    45
    6100*2965*4900
    600T/7000
    6000
    7000
    5620
    400
    320
    620
    45
    7100*2965*4700

    200 Ton CNC Hydraulic Press Brake Machine For Stainless Steel200 Ton CNC Hydraulic Press Brake Machine For Stainless Steel
