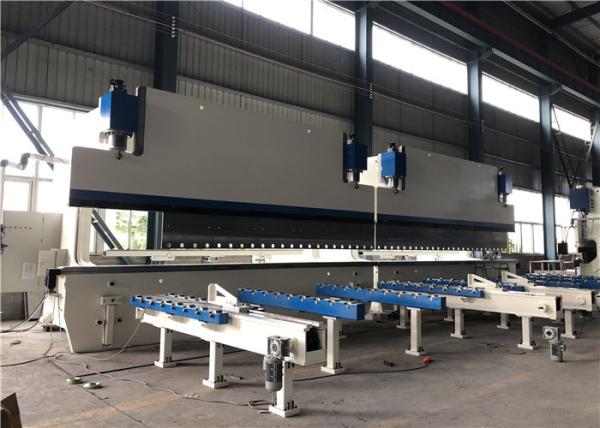

    CNC Tandem Polygonal Conical Light Pole Production Line

    Ask Lasest Price
    Brand Name : SMART CNC
    Model Number : 2-PB6-400/7000
    Certification : CE,ISO,TUV
    Price : 60000-90000 USD
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 20 sets/months
    Delivery Time : 2 months
    • Product Details
    • Company Profile

    CNC Tandem Polygonal Conical Light Pole Production Line

    High Quality Street Light Pole Production Line Making Machine,Professional Street Light Pole Machine

    Hydraulic Tandem Cnc Bending Machine Two CNC Sheet Plate Press Brake For Street Lighting Poles

    Two 2-PB6 Series in same specification are choosen as main machine with double motor linkage synchro-device, which may work together to process overlong workpiece or operate separately to increase production efficiency. Defection copensation device is fitted, too. Mechanic and fluid servos with mechanic slider are utilized in synchronous device. The stroke of upper slider and the position of rear apron are regulated quickly by machine and micro-regulated by hand with electronic NC display.

    Performance

    • Tandem Series press brakes allow for the combination of two Wuxi Smart cnc heavy duty press brakes in a synchronised tandem.
    • Typical industries served include earth moving,lighting columns,cranes,aerospace,transport and defence.
    • New intuitive and intelligent Touch PC based control ensures reduces `Art to Part' time and optimises bending results.
    • Multiple operating modes ensure fastest'Art to Part'times.
    • When used in tandem mode both machines are controlled via one Touch control.
    • Each machine in the tandem can also be used independently increasing flexibility.
    • SMART CNC heavy duty tooling is available to suit your individual application.
    • Machine has many configurable options at point of order:open height,stroke,throat gap and back gauge.
    • Additional options are available such as:automatic tool changing ,variable vee dies and automated material handling.

    Product parameters

    Model

    Preesure

    (KN)

    Max bending width (mm)Distance between cylinderThroat depthRam stockMax open height

    Motor

    (kw)

    Max bending thickness X Length (mm)
    300TX600060001200051307102009502X3712X12000
    400TX600080001200051407102509502X3717X12000
    500TX60001000012000515090030011002X4519X12000
    600TX600012800120004000110030012002X5520X12000
    800TX600016000120004000110040012004X3723X12000
    800TX700016000140005030110040012004X3722X14000
    800TX800016000160005030110040012004X3720X16000
    1200TX700024000140004500160040012504X4528X14000
    1200TX750024000150005000160040012504X4527X15000
    1200TX800024000160005030160040012504X4526X16000
    1600TX800032000160005210160040012504X5529X16000
    2000TX800040000160005210160040012504X5532X16000
    2400TX850048000170006000160040012504X75

    35X17000
