    380V 3 Phase CNC Tandem Press Brake For Lighting Pole Macking

    Ask Lasest Price
    Brand Name : SMART CNC
    Model Number : PoleG500
    Certification : CE,ISO,TUV
    Price : 40000-60000 USD
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 20 sets/months
    Delivery Time : 2 months
    • Product Details
    • Company Profile

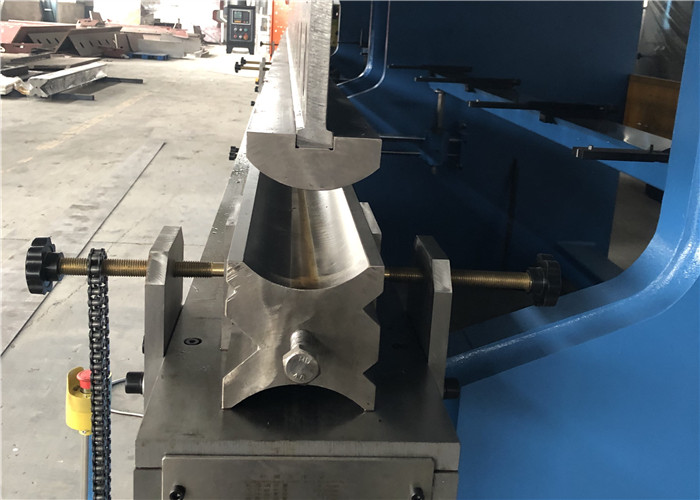

    380V 3 Phase CNC Tandem Press Brake For Lighting Pole Macking

    Professional Street Light Pole Making Machine,CNC Tandem Press Brake For Bending Lighting Pole


    Equipment compenent:


    1. 6*1800 cut to length line.


    2. 6*2400*14000 steel plates diagonally shearing production line.


    3. 2-PB6-400/7000 tandem press brake(for the street poles)


    4. 320*5-14000 automatic welding production line


    5. 630SS-14000 semi-automatic welding production line.


    6. 500*8-14000 mechanical seam machine


    7. 31Y-600*10 steel straightened machine.


    8. 90*4 tube bending machine.


    9. J-350*14000 automatic grinding machine


    10. 14000 electrostatic spraying prodcution line


    The above equipment can order according to your euqipment and producing.don’t buy cause waste.please consult to us if you don’t understand.we can be your best staff officer with sincere heart.insure of your mistake buying.we will do our best to let your make the best use.


    Processing flow:


    1. coil feeding 2. coil processing 3. steel plates diagonally shear to trapezoidal type 4. bending materials transfer 5. plates bending on press brake 6. transfer poles with seam to submerged arc welding production line 7. straighten steel poles 8.welding flanges and door lights 9. bending poles until forming 10. transfer galvanized 11. spraying (according to the request) 12. install the lights 13. delivery and installation


    The area of workshop:it need about 60000*18000mm two to three rooms,without stacking area and welding area.we can design the plant according to the users actual sizes ,ensure the operating production line.it need the power with about 100 kilowatt.


    Quality and services


    1. The course of designing, producing and selling are performed according to iso 9001.


    2. Our company can suplly study , installation and provide parts and repairing service all of the life.


    3. Free training and take charge of the adjusting.


    4. When equipment arrived, do well of the after service on time,reply in 6 hours and arrive to user ends in three work days.


    Products Specification:


    Height3 meter to 30 meter
    Suit forAirport, seaport, roadway, etc
    ShapeConical or octagonal or Polygonal
    Material

    Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm²

    Q235B/A36, Minimum Yield Strength ≥ 235 N/mm²

    As well as Hot rolled coil from ASTM A572 GR65, GR50, SS400

    Tolerance of the dimension<2% or as requirement.
    Surface treatmentHot dip galvanized Following ASTM A 123, or any other standard by client required.
    Joint of PolesSlip joint, flanged connected
    StandardISO 9001:2008
    Length of per sectionWithin 14 meter once forming
    Welding StandardB/T13912-92 standard.
    Thickness1 mm to 36mm
    Production Process

    Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packages
